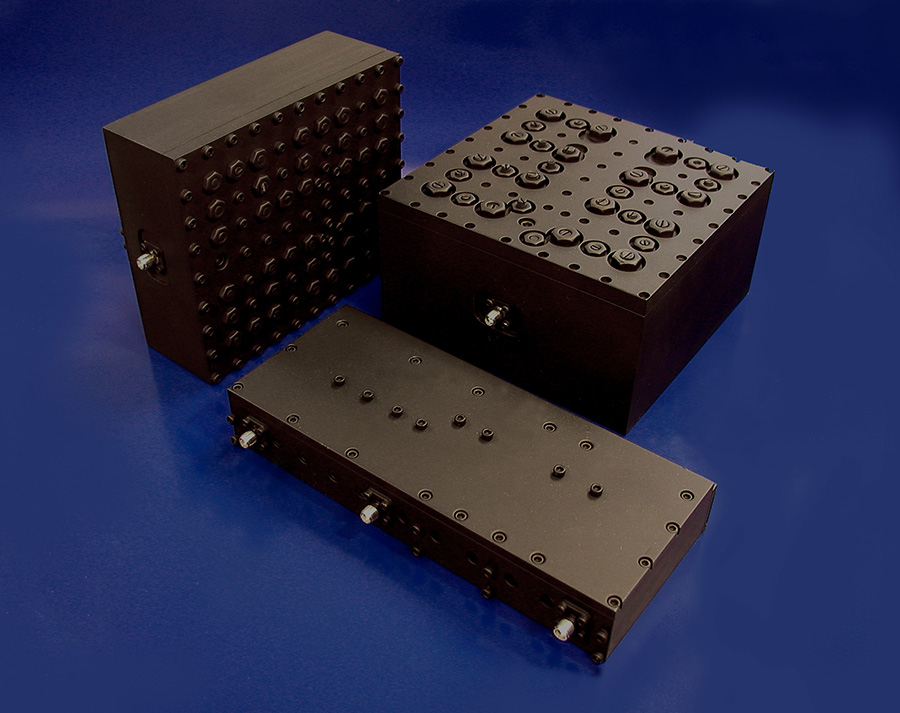

Cavity Filters

Compared to other filter types, cavity filters feature low insertion loss, high rejection and steep skirt selectivity, and high power handling capabilities. They are typically bandpass or band reject (notch) filters.

MCV offers an comprehensive range of cavity filters: cavity band pass, cavity band reject, cavity multiplexers, dual cavity duplexers, combline band pass, interdigital, waveguide bandpass and dielectric resonator loaded cavity filters.

Band Type:

Frequency:

Type:

wdt_ID	Part Number	Center Frequency (MHz)	Bandwidth (MHz) (min)	I.L. in BW (dB)(max)	Ripple	R.L.	Attenuation (dB)(min)	Power	Dimensions	Keep this part?	Data sheet exists?	Band Type	Frequency	Type
1	BCC70-1A1	70	69.4~70.6	3.00		20	50 @ 67, 73 70 @ 20, 120	2	228.6x152.4x114.3		Y	VHF	Low	Band Pass
2	BCC253-2A1	253	252 ~ 254	1.50		20	40 @ 230 MHz 30 @ 300 MHz						Low	Band Pass
3	BCC344-85A1	343.5	301 ~ 386	1.20		20	60 @ 225 & 500 MHz						Low	Band Pass
4	BCC417-1.4A1	418.15	417.4 ~ 418.9	3.00		20	60 @ 380 ~ 400 MHz 60 @ 420 ~ 430 MHz						Low	Band Pass
5	BCC514-6A2	514	511 ~ 517	5.00		14	55 min @ DC ~ 505MHz 55 min @ 523 ~ 2000MHz	5	96.8x64.5x76.2		Y	UHF	Low	Band Pass
6	BCC538-6A2	538	535 ~ 541	5.00	1.8	14	55 min @ DC ~ 529MHz 55 min @ 547 ~ 2000MHz	5	96.8x64.5x76.2		Y	UHF	Low	Band Pass
7	BCC539-25A1	539	526.5 ~ 551.5	1.50		20	30 @ Fc ± 15 MHz						Low	Band Pass
8	BCC548-12B1	548	542~554	1.00	1.0	15	45 @ 518~538 60 @ DC~518 45 @ 566~590 70 @ 590~1300	30	150x96x55		Y	UHF	Low	Band Pass
9	BCC548-60A1	548	518 ~ 578	1.00	0.5	18	50 @ 478, 618		104.6x134.9x17.5		Y	UHF	Low	Band Pass
10	BCC596-12A1	596	590~602	1.00	1.0	15	20 @ 580~584, 608~612 27 @ 572~580, 612~620 48 @ DC~572, 620~1500		172x118x75		Y	UHF	Low	Band Pass
11	BCC596-12B1	596	590~602	1.00	1.0	15	30 @ DC~578 20 @ 617~1300	30	150x96x55		Y	UHF	Low	Band Pass
12	BCC608-60A1	608	578 ~ 638	1.00	0.5	18	50 @ 538~678		108.0x123.0x17.5		Y	UHF	Low	Band Pass
13	BCC632-12A1	632	626~638	1.00	1.0	15	20 @ 616~620, 644~648 27 @ 608~616, 648~656 48 @ DC~608, 656~1500		172x118x75		Y	UHF	Low	Band Pass
14	BCC632-12B1	632	626~638	1.00	1.0	15	20 @ DC~614 30 @ 653~1300		150x96x55		Y	UHF	Low	Band Pass
15	BCC647-25A1	647	634.5 ~ 659.5	1.50		20	30 @ Fc ± 15 MHz						Low	Band Pass
16	BCC662-12A1	662	656~668	1.00	1.0	15	20 @ 646~650, 674~678 27 @ 638~646, 678~686		172x118x75		Y	UHF	Low	Band Pass
17	BCC668-60A1	668	638 ~ 698	1.00	0.5	18	50 @ 598, 738		110.2x113.0x17.5		Y	UHF	Low	Band Pass
18	DBCC710-740-12A1	710 740	704 ~ 716 734 ~ 746	1.50		18	80 @ 734 ~ 746 MHz 80 @ 704 ~ 716 MHz						Low	Band Pass
19	BCC772-6A1	772	769 ~ 775	2.30		20	65 @ 777 ~ 787 MHz						Low	Band Pass
20	DBCC780-942-45- 35A1	780 942	758 ~ 803 925 ~ 960	1.00		18	30 @ 703 ~ 748 MHz 30 @ 880 ~ 915 MHz						Low	Band Pass
21	BCC813-15A1	813.5	806~821	0.50		14	80 @ 768.5, 858.5		483x133x117	Convert	Y		Low	Band Pass
22	BCC833-32A1	833	817~849	1.60	1.1	15	23 @ 851~866, 45 @ 1000~1300, 50 @ 1800~2700, 40 @ 728~757, 55 @ DC~620, 30 @ 777~787MHz	1	160x70x30	Convert	Y		Low	Band Pass
23	BCC840-110A1	840	785~895	0.50		18	40 @ 770, 910 50 @ 765, 915	2	120.5x63.5x64.0	Convert	Y		Low	Band Pass
24	BCC827.5-43A1	827.5	806 ~ 849	2.30		20	50 @ 851 ~ 869 MHz						Low	Band Pass
25	BCC881-25A1	881.5	869 ~ 894	2.00	2.0	20	40 @ 824~849, 900~915 MHz 7 @ 851~866, 896~900 MHz	3	85x60x70	Convert	Y		Low	Band Pass
26	BCC881-25B1	881.5	869 ~ 894	3.00		20	40 @ 849 MHz 40 @ 900 MHz						Low	Band Pass
27	BCC900-49A1	900.5	876 ~ 925	1.00		20	66 @ 380 ~ 470 MHz						Low	Band Pass
28	BCC900-110A1	900	845 ~ 955	0.50		18	40@ 830, 970 50@ 825, 975	2	120.5x63.5x64.0	Convert	Y		Low	Band Pass
29	BCC905-19A1	905.5	896 ~ 915	3.00	2.0	14	55 @ DC~880, 40 @ 881~894, 65 @ 925~960MHz	3	212x91x70	Convert	Y		Low	Band Pass
30	BCC907-15A1	907.5	900~915	2.00		15	50 @ 889 40 @ 894	20	99.3x63.8x58.4		Y	UHF	Low	Band Pass
31	BCC907-15A2	907.5	900~915	2.00		15	50 @ 889 40 @ 894	20	99.3x63.8x58.4		Y	UHF	Low	Band Pass
32	BCC912.5-25A1	912.5	900~925	1.00	0.5	18	10 @ 895 10 @ 930	10	195.6x81.0x40.0		Y	ISM	Low	Band Pass
33	BCC912.5-35A1	912.5	895~930	0.70	0.5	18	10 @ 885, 940 45 @ DC~850, 1800~1850 50 @ 2700~2775 60 @ 4500~4625	500	183.8x81.0x40.0		Y	ISM	Low	Band Pass
34	BCC925-70A1	925	890 ~ 960	1.00		20	70 @ 985 MHz 70 @ 870 MHz						Low	Band Pass
35	BCC947-25A1	947.5	935 ~960	1.00		20	65 @ 890 ~ 915 MHz						Low	Band Pass
36	BCC960-110A1	960	905 ~ 1015	0.50		18	40 @ 920~1000 50 @ 910~1010	2	120.5x63.5x64.0	Convert	Y		Low	Band Pass
37	BCC1000-20A1	1000	990~1010	0.70	0.3	20	50 @ DC~950 50 @ 1050~2500	10	87.0x80.0x39.0		Y	UHF	Low	Band Pass
38	BCC1000-20B1	1000	990~1010	0.70	0.3	20	50 @ 947.5, 1052.5	10	62.0x62.0x57.0	Convert	Y		Low	Band Pass
39	BCC1000-20C1	1000	990~1010	0.70	0.3	20	50 @ 945, 1055	10	62.0x62.0x57.0	Convert	Y		Low	Band Pass
40	BCC1000-40A1	1000	980~1020	0.70	0.3	20	50 @ 950, 1050	10	90.0x62.0x57.0	Convert	Y		Low	Band Pass
41	BCC1000-40B1	1000	980~1020	0.70	0.3	20	50 @ 947.5, 1052.5	10	90.0x62.0x57.0	Convert	Y		Low	Band Pass
42	BCC1000-40C1	1000	980~1020	0.70	0.3	20	50 @ 945, 1055	10	90.0x62.0x57.0	Convert	Y		Low	Band Pass
43	BCC1055-190A1	1055	960~1150	1.00	0.5	15	30 @ 1215	200	185.42x76.2x31.8		Y	L Band	High	Band Pass
44	BCC1090-10A1	1090	1085~1095	6.00	2.0	14	50 @ 1065, 1115 70 @ 1040, 1140 90 @ 970, 1210	10	100.3x70.4x22.9		Y	L Band	High	Band Pass
45	BCC1100-20A1	1100	1090 ~ 1110	0.70		20	50 @ DC~1050 50 @ 1150~2500	10	80x87x39		Y	L Band	High	Band Pass
46	BCC1100-20A2	1100	1090 ~ 1110	1.00		20	80 @ DC~1065 80 @ 1135~2500	10	165x81x50		Y	L Band	High	Band Pass
47	BCC1100-20A3	1100	1090 ~ 1110	0.70		20	50 @ DC~1050 50 @ 1150~2500	10	54x54x45		Y	L Band	High	Band Pass
48	BCC1187-125A1	1187.5	1125~1250	1.00		18	60 @ 1100, 1275	20	240.0x84.0x53.0	Convert	Y		High	Band Pass
49	BCC1200-20A1	1200	1190 ~ 1210	1.00		20	80 @ 1165, 1235 MHz						High	Band Pass
50	BCC1295-20A1	1295	1285~1305	0.50	0.2	20	60 @ 1165, 1185	10	74.4x69.6x39.9		Y	L Band	High	Band Pass
51	BCC1300-240A1	1300	1200~1400	1.00		14	65 @ DC~1030 50 @ 1030~1090 50 @ 1830~1950 40 @ 2700~11000	100	52.24x33.4x14.06		Y	L Band	High	Band Pass
52	BCC1425-250A1	1425	1300~1550	0.30	0.2	18	70 @ 2600~3100 MHz		160x57x36	Convert	Y		High	Band Pass
53	BCC1457-10A1	1457	1452~1462	1.00		18	40 @ 1512~1525	10	80x87x39		Y	L Band	High	Band Pass
54	BCC1474-85A1	1475	1432~1517	1.00	0.7	18	50 @ DC~1407 50 @ 1542~3000	20	76x52x32		Y	LTE band-75	High	Band Pass
55	BCC1485-100A1	1485	1435 ~ 1535	0.50		15	40 @ DC-1335 MHz 40 @ 1570 ~ 6750 MHz						High	Band Pass
56	BCC1518-13A1	1519	1512~1525	1.00		18	40 @ 1452~1462	10	48x87x39		Y	L Band	High	Band Pass
57	BCC1553-4.4A1	1553	1550.8 ~ 1555.2	2.00		18	60 @ 1570 ~ 6750 MHz						High	Band Pass
58	BCC1575-10A1	1575	1570.42~1580.42	1.20	0.5	10	30 @ 1525, 1625	100	31.8x25.4x12.7		Y	L1 Band	High	Band Pass
59	BCC1575-24A1	1575	1563.42~1587.42	3.00	1.0	14	30 @ 1559.17, 1591.67	10	127.0x63.5x38.1		Y	L1 Band	High	Band Pass
60	BCC1575-68A1	1575	1541~1609	1.50	3.5	14	60 @ 100~1522, 1686~5000 50 @ 1526~1533 70 @1626~1676	3	76x52x26		Y	L1 Band	High	Band Pass
61	BCC1579-68A1	1579	1545~1613	1.50	3.5	14	60 @ 100~1526, 1690~5000 50 @ 1526~1537 70 @ 1625~1680	3	76x52x26		Y	L1 Band	High	Band Pass
62	BCC1621-10A1	1621	1616~1626.5	2.00		18	45 @ DC~1585 37 @ 1585~1605 27 @ 1605~1610 35 @ 1650~12000	1	75x55.12x25.4		Y	Iridium	High	Band Pass
63	BCC1675-46A1	1675	1652~1698	1.50	0.5	14	40 @ 1625~1725MHz 55 @ 1600~1750MHz	10	120.65x31.37x19.05	Convert	Y		High	Band Pass
64	BCC1747-75A1	1747.5	1710 ~ 1785	1.00		20	60 @ 1805 ~ 1880 MHz						High	Band Pass
65	DBCC1756-1970- 20A1	1756 1970	1746.7 ~ 1766.7 1960 ~ 1980	1.00		18	60 @ 0 ~1000MHz, 45 @ 1841.7MHz 45 @ 1861.7MHz, 45 @ 2150MHz						High	Band Pass
66	BCC1848-100A1	1848	1798 ~ 1898	1.00		20	43 @ DC~1730 MHz 43 @ 1960~4000 MHz						High	Band Pass
67	BCC1880-60A1	1880	1850~1910	1.00	0.8	20	50 @ DC~1700, 2110~2155 45@ 1710~1755, 1930~1990, 2400~2483, 2490~2700, 5725~5845 30 @ 5845~11800	20	139.0x64.5x27.0	Convert	Y		High	Band Pass
68	BCC1940-20A1	1940	1930~1950	0.90		15	76 @ 1920 22 @ 1955	50	314x114x55	Convert	Y		High	Band Pass
69	BCC1950-60A1	1950	1920 ~ 1980	3.00		20	80 @ 1895 MHz 80 @ 2005 MHz						High	Band Pass
70	BCC1960-100A1	1960	1910 ~ 2010	1.30	0.2	20	Coupling 30 ± 0.5 dB	150	225x51x23.5	Convert	Y		High	Band Pass
71	BCC2007-485A1	2007.5	1765 ~ 2250	0.50	0.4	18	30 @ 2312 MHz	5	100.0x70.0x40.0		Y	L Band	High	Band Pass
72	BCC2033-0A1	2033.2	2028.7~2037.7	1.50	0.5	14	60 @ DC~1973.2 60 @ 2093.2~4000	1	211.8x40.6x41.1		Y	S Band	High	Band Pass
73	BCC2035-20A1	2035.0	2025~2045	3.00	1.2	20	60 @ 2010, 2060	1	84.5x46.9x35.0	Convert	Y		High	Band Pass
74	BCC2035-20B1	2035.0	2025~2045	3.50	1.2	15	60 @ 2010, 2060	1	113.4x28.0x23.0	Convert	Y		High	Band Pass
75	BCC2106-5A1	2106.5	2104 ~ 2109	1.50	0.5	15	20 min @ 2095 45 min @ 2118	10	150x74x25.4		Y	S Band	High	Band Pass
76	BCC2140-60A1	2140	2110 ~ 2170	1.00		20	60 @ 1880 MHz						High	Band Pass
77	BCC2200-50A1	2200	2175 ~ 2225	0.50	0.3	14	50 min @ 1600 ~ 2100 MHz 50 min @ 2300 ~ 2800 MHz	30	79.9x51.8x25.4		Y	S Band	High	Band Pass
78	DBCCD2205- 2211-3A1	2205 2211	2203.5 ~ 2206.5 2209.5 ~ 2212.5	3.00		15	60 @ 2208 MHz, 40 @ 2198 MHz 40 @ 2218 MHz						High	Band Pass
79	BCC2208-9A1	2208	2203.499~2212.501	3.00	0.5	14	60 @ DC~2180 60 @ 2236~4000	1	255.3x40.6x37.8		Y	S Band	High	Band Pass
80	BCC2210-20A1	2210	2200 ~ 2220	2.00		15	60 @ 2177, 2243	20	127x57x39		Y	S Band	High	Band Pass
81	BCC2247-95A1	2248	2200~2295	0.50	1.1	18	50 @ 2182~2100 40 @ 2187 54 @ 2306 50 @ 2310~2400	20	140x70x40		Y	S Band	High	Band Pass
82	BCC2250-100A1	2250	2200~2300	0.90	0.3	19	70 @ 2025~2120 70 @ 2400	2	267x35x26		Y	S Band	High	Band Pass
83	BCC2250-100A2	2250	2200~2300	1.00	0.3	18	30 @ 2160 60 @ DC~2081.25 60 @ 2403~4000	10	116x20x20		Y	S Band	High	Band Pass
84	BCC2278-20A1	2278	2268~2288	2.00		15	60 @ 2245MHz, 60 @ 2311MHz	20	127x57x39		Y	S Band	High	Band Pass
85	BCC2295-10A1	2295	2290~2300	0.80	0.3	18	70 @ 2500	10	80x87x39		Y	NR	High	Band Pass
86	BCC2300-50A1	2300	2275 ~ 2325	0.50	0.3	14	50 min @ 1700 ~ 2200 MHz 50 min @ 2400 ~ 2900 MHz	30	79.9x51.8x25.4		Y	S Band	High	Band Pass
87	BCC2312-15A1	2312.5	2305~2320	2.00		18	30 @ 2325~2328 MHz 30 @ 2336~2341 MHz		60x60x40	Convert	Y		High	Band Pass
88	BCC2340-20A1	2340.0	2330~2350	0.80	0.3	18	70 @ 2550	10	80x87x39		Y		High	Band Pass
89	BCC2340-80A1	2340	2300~2380	1.00		18	75 @ DC~2110 70 @ 2110~2170 25 @ 2290, 2410 70 @ 2500~2700 40 @ 2700~12750	20	132x64x27		Y	S Band	High	Band Pass
90	BCC2345-80A1	2345	2305~2385	1.40	0.2	20	Coupling 30 ± 0.5 dB	150	225x72x23.5	Convert	Y		High	Band Pass
91	BCC2350-100A1	2350	2300~2400	1.00	0.7	18	50 @ DC~2220 50 @ 2480~5000	20	137x108x37		Y	LTE band-40	High	Band Pass
92	BCC2350-7A1	2350	2346.5~2353.5	1.50		14	20 @ 2340, 2360	15	147.3x63.5x45.7		Y	LTE	High	Band Pass
93	BCC2360-20A1	2360	2350~2370	0.80	0.3	18	70 @ 2210 45 @ 2278 70 @ 2550	10	80x87x39		Y	LTE	High	Band Pass
94	BCC2365-10A1	2365	2360~2370	1.20		18	45 @ 2385~2395	10	80x87x39		Y	LTE	High	Band Pass
95	BCC2380-22A1	2380	2369~2391	3.00		15	60 @ 2355, 2405	5	100x49x32		Y	S Band	High	Band Pass
96	BCC2390-10A1	2390	2385~2395	1.20		18	45 @ 2360~2370	10	80x87x39		Y	LTE	High	Band Pass
97	BCC2409-195A1	2409.5	2312~2507	0.50	0.4	14	30 @ 2250 MHz		90.0x47.3x33.0		Y	S Band	High	Band Pass
98	BCC2412-22A1	2412	2401~2423	3.00	0.3	15	60 @ 2387~2437	50	108x56x27	Convert	Y		High	Band Pass
99	BCC2412-30A1	2412	2397~2427	2.00	0.3	15	45 @ 2362, 2462	50	56x56x27	Convert	Y		High	Band Pass
100	BCC2422-22A1	2422	2411~2433	3.00		15	60 @ 2397, 2447	5	100x49x26		Y	S Band	High	Band Pass
101	BCC2422-30A1	2422	2407~2437	2.00	0.3	15	45 @ 2362, 2462	50	56x56x27	Convert	Y		High	Band Pass
102	BCC2437-22A1	2437	2426~2448	3.00	0.3	15	60 @ 2412~2462	50	108x56x27	Convert	Y		High	Band Pass
103	BCC2437-25A1	2437	915.5~927.5	3.90	2.5	14	29 @ 907 26 @ 931 31 @ 932 26 @ 933~2000	10	123x71x30	Convert	Y		High	Band Pass
104	BCC2437-30A1	2437	2422~2452	2.00	0.3	15	45 @ 2387, 2487	50	56x56x27	Convert	Y		High	Band Pass
105	BCC2442-85A1	2443	2400~2485	1.50	0.5	15	45 @ DC~2350 45 @ 2540~4000	50	77x50x28		Y	ISM	High	Band Pass
106	BCC2447-95A1	2448	2400~2495	1.00		18	40 @ DC~2350 40 @ 2550~4000	20	77x50x28		Y	WLAN	High	Band Pass
107	BCC2448-100A1	2448	2398 ~ 2498	0.30		20	70 @ 2000 MHz 60 @ 2700 MHz	5	64x55x26		Y	S Band	High	Band Pass
108	BCC2452-22A1	2452	2441~2463	3.00	0.3	15	60 @ 2427, 2477	50	108x56x27	Convert	Y		High	Band Pass
109	BCC2452-30A1	2452	2437~2467	2.00	0.3	15	45 @ 2402, 2502	50	56x56x27	Convert	Y		High	Band Pass
110	BCC2462-22A1	2462	2451~2473	3.00	0.3	15	60 @ 2437, 2487	50	108x56x27	Convert	Y		High	Band Pass
111	BCC2462-30A1	2462	2447~2477	2.00	0.3	15	45 @ 2412, 2512	50	56x56x27	Convert	Y		High	Band Pass
112	BCC2489-11A1	2489	2483.5~2495	1.00		18	40 @ DC~2469 40 @ 2509~3500	20	138x138x32		Y	LTE	High	Band Pass
113	BCC2590-80A1	2590	2550~2630	2.00	1.0	15	80 @ DC~2390 80 @ 2790~4000 60 @ 4000~7300	100	129x88x40		Y	NR	High	Band Pass
114	BCC2593-194A1	2593	2496~2690	1.00		18	70 @ 0~2421 70 @ 2755~5000	100	139x55x28		Y	LTE	High	Band Pass
115	BCC2593-194B1	2593	2496~2690	1.00		18	65 @ DC~2300 40 @ 2886~4000	20	137x108x38		Y	LTE band-41	High	Band Pass
116	BCC2608-22.6A1	2608	2596.7 ~ 2619.3	2.00		20	10 @ 2588.75 ~ 2595.75 MHz 10 @ 2620.25 ~ 2627.25 MHz						High	Band Pass
117	BCC2620-48A1	2620	2596 ~ 2644	0.50	0.3	14	3 @ 2586, 2654	10	87x62x34	Convert	Y		High	Band Pass
118	BCC2642-20A1	2642	2632.5 ~ 2652.5	1.00	0.5	20	5 dBc @ Fc ± 17.5 MHz 20 dBc @ Fc ± 25 MHz 60 dBc @ 9KHz ~2500 MHz 40 dBc @ 2.7 ~12.5 GHz 60 dBc @ 2nd Harmonics		150x60x40	Convert	Y		High	Band Pass
119	BCC2642-60A1	2643	2612.5~2672.5	1.40	0.2	20	Coupling 30 ± 0.5 dB		187x66x19.5	Convert	Y		High	Band Pass
120	BCC2643-60A1	2643	2612.5~2672.5	1.40		20	Coupling 30 ± 0.5 dB						High	Band Pass
121	BCC2700-400A1	2700	2500~2900	2.00		14	20 @ 2400, 3000 50 @ 2200, 3200	10	143x28x27		Y	S Band	High	Band Pass
122	BCC2760-414A1	2760	2553~2967	2.50		18	70 @ 2428 MHz 70 @ 3030 MHz		158.5x12.7x25.4		Y	S Band	High	Band Pass
123	BCC2856-30A1	2856	2841~2871	1.20		16	40 @ DC~2756 40 @ 2956~11000		49.6x26.6		Y	S Band	High	Band Pass
124	BCC3200-50A1	3200	3175 ~ 3225	0.50		14	50 min @ 2600 ~ 3100 MHz 50 min @ 3300 ~ 3800 MHz	30	79.9x51.8x25.4		Y	S Band	High	Band Pass
125	BCC3300-400A1	3300	3100 ~ 3500	1.00		20	60 @ 3000, 3600 MHz						High	Band Pass
126	BCC3338-06A1	3338.5	3335.5 ~ 3341.5	2.30	1.2	15	40 @ 3333.9, 3343.1	10	212x114x56	Convert	Y		High	Band Pass
127	BCC3350-06A1	3350.5	3347.5 ~ 3353.5	2.00	1.0	15	40 @ 3345.9, 3355.1	10	182x94x42	Convert	Y		High	Band Pass
128	BCC3500-100A1	3500.0	3450~3550	1.00	0.3	14	40 @ 30~3200 40 @ 3600~6000	50	69x45x25.4		Y	CBRS	High	Band Pass
129	BCC3500-200A1	3500	3400~3600	1.00	0.5	20	50 @ 3000~3300, 4500~6000 MHz 60 @ 2000~3000 MHz	50	58x40x28		Y	CBRS	High	Band Pass
130	BCC3600-100A1	3600	3550~3650	1.00		16	60 @ DC~700 40 @ 700~2000 30 @ 2000~3000 30 @ 3700~3800 53 @ 3800~6000	50	44.4x44.4x25		Y	CBRS	High	Band Pass
131	BCC3600-400A1	3600	3400~3800	2.00		14	20 @ 3380 MHz 20 @ 3820 MHz		63.50x30.48x25.40		Y	S Band	High	Band Pass
132	BCC3622-5A1	3623	3620-3625	2.00		18	25 @ 3550, 3635	5	105x80x32		Y	CBRS	High	Band Pass
133	BCC3637-5A1	3638	3635~3640	2.00		18	25 @ 3625, 3800	5	105x80x32		Y	CBRS	High	Band Pass
134	BCC3647-25A1	3648	3635~3660	3.50	1.5	16	35 @ 3560~3620	1	50.8x50.8x25.4		Y	S Band	High	Band Pass
135	BCC3730-140A1	3730	3660~3800	0.40		18	90 @ 7320~7600 90 @ 10980~11400	150	110x30x22		Y		High	Band Pass
136	BCC3770-40A1	3770	3750~3790	3.00		15	70 @ 3700 80 @ 3840	5	100x49x32		Y	S Band	High	Band Pass
137	BCC3840-280A1	3840	3700~3980	1.30	1.0	16	55 @ DC~3300 50 @ 3300~3400 25 @ 3400~3660 25 @ 4020~4400 60 @ 4400~5000 30 @ 5000~5850 60 @ 5850~6200 15 @ 6200~7400 45 @ 7400~7960 30 @ 7960~11100 40 @ 11100~11940 10 @ 11940~13530 25 @ 13530~13811 10 @ 13811~14800 30 @ 14800~15965 5 @ 15965~18500 25 @	39	65x25x20		Y		High	Band Pass
138	BCC4150-1700A1	4150	3300~5000	0.50		14	30 @ 5150~6000	1	77x45x25.4		Y	NR	High	Band Pass
139	BCC4180-100A1	4180	4130~4230	3.00		20	40 @ 4080, 4280	2	95.25x25.4x19.05		Y	C Band	High	Band Pass
140	BCC4983-12A1	4983.75	4977.75 ~ 4989.75	2.00		20	60 @ Fc ± 30 MHz						High	Band Pass
141	BCC5120-59A1	5120.5	5091~5150	0.50		25	80 @ 2500 MHz 40 @ 4000, 6000 MHz	10	81.5x75x16	Convert	Y		High	Band Pass
142	BCC5120-59B1	5120.5	5091~5150	0.50		20	80 @ 2500 MHz 40 @ 4000, 6000 MHz	10	83.0x28.0x20.0	Convert	Y		High	Band Pass
143	BCC5250-100A	5250.0	5200~5300	2.00	0.5	15	70 @ 5825	1	41.4x16.8x10.2		Y	C Band	High	Band Pass
144	BCC5250-60A1	5250	5220~5280	0.50		20	80 @ 2630 MHz 40 @ 4130, 6130 MHz	10	81.5x75x16	Convert	Y		High	Band Pass
145	BCC5250-60B1	5250	5220 ~ 5280	0.50		20	80 @ 2630 MHz 40 @ 40130, 6130 MHz	10	83.0x28.0x20.0	Convert	Y		High	Band Pass
146	BCC5521-105A1	5521.25	5468.75 ~ 5573.75	1.50		20	30 @ 5622.5~5725 MHz		77.0x39.0x28.0	Convert	Y		High	Band Pass
147	BCC5650-700A1	5650.00	5300~6000	1.00		18	65 @ DC~4600, 6700~18000	5	80x18x14		Y	C Band	High	Band Pass
148	BCC5650-700A2	5650.00	5300~6000	1.00		14	30 @ 4500 60 @ 6700	20	90x30x17		Y	C Band	High	Band Pass
149	BTC5650-720A1	5650	5290 ~ 6010	2.00		18	60 @ 4500 MHz, 40 @ 7000 MHz 11 @ 5000, 6300 MHz						High	Band Pass
150	BTC5650-730A1	5650	5285 ~ 6015	1.00		18	60 @ 4000 MHz, 60 @ 6790 MHz						High	Band Pass
151	BCC5674-105A1	5673.75	5621.25 ~ 5726.25	1.50		20	30 @ 5572.5~5470		77.0x39.0x28.0	Convert	Y		High	Band Pass
152	BCC5685-70A1	5685	5650 ~ 5720	1.00	0.5	20	40 @ 5400, 5800	1	130x33x14	Convert	Y		High	Band Pass
153	BCC5742-30A1	5742	5727 ~ 5757	1.80	0.4	18	45 @ 5447, 6037		80x30x16	Convert	Y		High	Band Pass
154	BCC5742-30A2	5742	5727~5757	1.80		18	45 @ 5447, 6037	1	45x45x16		Y	C Band	High	Band Pass
155	BCC5825-100A	5825	5775~5875	2.00	0.5	15	70 @ 5250	1	46.0x16.8x10.2		Y	C Band	High	Band Pass
156	BCC5832-30A1	5832	5817~5847	1.80	0.4	18	45 @ 5537, 6127 MHz		80x30x16	Convert	Y		High	Band Pass
157	BCC5832-30A2	5832	5817~5847	1.80		18	45 @ 5537, 6127	1	45x45x16		Y	C Band	High	Band Pass
158	BCC5850-40A1	5850	5830 ~ 5870	3.50	1.8	18	15 @ 5825 MHz 15 @ 5875 MHz	1	74.0x41.5x14.0		Y	C Band	High	Band Pass
159	BCC5850-40A2	5850	5830~5870	3.80	1.8	18	15 @ 5825, 5875	1	85x45x16		Y	C Band	High	Band Pass
160	BCC5880-40A1	5880	5860~5900	2.00		20	50 @ 5810 MHz 50 @ 5950 MHz						High	Band Pass
161	BCC5880-40A2	5880	5860~5900	2.00		20	50 @ 5810 45 @ 5950	1	60x45x16		Y	C Band	High	Band Pass
162	BTC6400-900A1	6400	5950 ~ 6850	2.75		18	55 @ 5130 MHz 50 @ 7330 MHz						High	Band Pass
163	BCC6475-100A1	6475	6425 ~ 6525	1.50		16	72 @ 6220 MHz 72 @ 6740 MHz						High	Band Pass
164	BCC7150-700A1	7150	6800~7500	1.00		18	45 @ DC~6100 45 @ 8200~18000	5	70x16x13		Y	C Band	High	Band Pass
165	BCC7150-700A2	7150	6800~7500	1.00		14	40 @ 6100, 8600	20	80x30x17		Y	C Band	High	Band Pass
166	BCC7950-200A1	7950	7850~8050	0.60		20	90 @ 6950, 8950 MHz						High	Band Pass
167	BCC8160-780A1	8160	7770~8550	1.00		20	35 @ 7600 MHz 35 @ 9000 MHz	1	64.0x28.0x13.5		Y	X Band	High	Band Pass
168	BCC8250-500A1	8250	8000~8500	0.90	0.4	17	70 @ 7800, 8700	2	215x25x16		Y	X Band	High	Band Pass
169	BCC8250-600A1	8250	7950 ~ 8550	1.00		20	35 @ 7600, 35 @ 9000	1	40.0x28.0x13.5		Y	X Band	High	Band Pass
170	BCC8750-500A1	8750	8500 ~ 9000	1.00	0.2	18	60 @ DC~8075 MHz 50 @ 9425~18000 MHz		63.5x12.7x12.7	Convert	Y		High	Band Pass
171	BCC9300-420A1	9300	9090 ~ 9510	1.30		17	60 @ 8400 MHz 50 @ 10100 MHz						High	Band Pass
172	BCC9325-128A1	9326	9261.5~9389.5	4.00	0.5	14	80 @ 8575 75 @ 10195		40.64x20.32x10.16		Y	X Band	High	Band Pass
173	BCC9500-1000A1	9500	9000~10000	1.00		15	20 @ 8500, 10400	1	44.45x12.7x12.7		Y	X Band	High	Band Pass
174	BCC9550-500A1	9350	9300~9800	1.20		18	30 @ DC~9000	1	58x16.5x16.5		Y	X Band	High	Band Pass
175	BCC11702-20A1	11702	11692 ~ 11712	3.00		20	50 @ 11632, 11772 MHz						High	Band Pass
176	BCC13000-400A1	13000	12800 ~ 13200	2.00		16	60 @ 11800 MHz 60@ 14200 MHz						High	Band Pass
177	BCC14125-750A1	14125	13750~14500	1.00		14	40 @ 5400, 5800 MHz	1	40x20x13	Convert	Y		High	Band Pass
178	BCC15000-400A1	15000	14800 ~ 15200	2.00		17	60 @ 13800 MHz 50 @ 16200 MHz						High	Band Pass
179	BCC16340-300A1	16340	16190 ~ 16490	1.00	0.5	14	60 @ 15580, 17100 MHz 55 @ 8700 MHz, 60 @ 860 MHz		50.8x15.2x14.0		Y	Ku Band	High	Band Pass
180	BCC17200-300A1	17200	17050 ~ 17350	1.00	0.5	14	60 @ 16440, 17960 MHz 55 @ 8700 MHz, 60 @ 860 MHz		50.8x15.2x14.0		Y	Ku Band	High	Band Pass
181	BCC17200-2000A1	17200	16200 ~ 18200	1.00	0.5	14	40 @ 34000 MHz		25.4x15.2x14.0		Y	Ku Band	High	Band Pass
182	BCCD7800-2A1	7800	7799.0125~7800.9875	4.50		14	30 @ 7790, 7810	30	52x30x15.5		Y	X Band	High	Band Pass
183	BCCM454-8A1	454	450~458	0.80		20	60 @ 462~470	150	245x166x90		Y	LTE	Low	Band Pass
184	BCCM466-8A1	466	462~470	0.80		20	60 @ 450~458	150	245x166x90		Y	LTE	Low	Band Pass
185	BCCM2350-100A1	2350	2300~2400	0.50	0.4	20	100 @ 5000~6000	50	130x36x37		Y	LTE band-40	High	Band Pass
186	BCCM2448-94A1	2448	2401~2495	0.50	0.4	20	100 @ 5000~6000	50	130x36x37		Y	S Band	High	Band Pass
187	BTC5650-720A1	5650	5290~6010	2.00		14	60 @ 4500, 11 @ 5000 11 @ 6300, 40 @ 7000	1	36.8x10.2x12.7		Y	C Band	High	Band Pass
188	BTC5650-730A1	5650	5285~6015	1.00		14	60 @ 4000, 60 @ 6790	1	62.2x9.7x12.7		Y	C Band	High	Band Pass
189	BTC6400-900A1	6400	5950~6850	2.75		10	55 @ 5130, 50 @ 7330	1	62.0x10.2x10.2		Y	C Band	High	Band Pass
190	BTC8000-300A1	8000	7850~8150	1.00		15	40 @ 6900	1	25.4x12.7x6.4		Y	C Band	High	Band Pass
191	BTC8000-300B1	8000	7850~8150	1.75		15	70 @ 6900, 9000	1	36.8x15.2x6.4		Y	C Band	High	Band Pass
192	OBCC3840-280A1	3840	3700~3980	1.00	1	16	25 @ 467~699, 5925~7400 50 @ 699~1695, 7400~7960 75 @ 1695~2690 40 @ 2690~2806, 14800~15920 20 @ 2806~3640, 4020~4400 65 @ 4400~4865 85 @ 4865~5925 30 @ 11100~11940 35 @ 18500~19900	39	161x86x20		Y	NR n-77	High	Band Pass
193	QBCC2350-100A1	2350	2300~2400	1.00	1.2	20	80 @ DC~2200 25 @ 2200~2280 15 @ 2280~2290 15 @ 2410~2420 25 @ 2220~2496 75 @ 2496~5500 20 @ 5500~12750	1	352.5x248x38.7		Y		High	Band Pass
194	QBCCM796-196A1	796	698~894	0.50		20	25 @ 1468~1538	150	214x202x55		Y		Low	Band Pass
195	QBCCM2332-55A1	2332.5	2305~2360	0.50		20	55 @ 4700~4720	150	238.3x174.0x71.6		Y		High	Band Pass
196														Band Reject
197	DRCC1175-1585-26A1	1175, 1585	500~1100 1250~1520 1650~2000	0.40		14	50 @ 1163, 1189, 1559, 1610	10	317.5x90.9x63.5		Y		High	Band Reject
198	RCC763-10A1	763	DC~2140 770~2140	2.25		14	60 @ 758~768	10	328.93x112.78x85.34		Y	UHF	Low	Band Reject
199	RC772-4A1	772	776~787	1.00	1	15	15 @ 770~774	40	119.38x133.35x28.45		Y	UHF	Low	Band Reject
200	RCC788-30A1	788	773~803	4.00		14	70 @ 773~803	50	330x100x78		Y	LTE	Low	Band Reject
201	RCC793-10A1	793	DC~786	2.25		14	60 @ 788~798	10	328.93x112.78x85.34		Y	UHF	Low	Band Reject
202	RCC875-30A1	875	DC~850 900~2500	4.00		14	70 @ 860~890	50	330x100x78		Y	LTE	Low	Band Reject
203	RCC952-15A1	952	945~960	4.00		14	70 @ 945~960	50	285x100x73		Y	LTE	Low	Band Reject
204	RCC1175-26A1	1175	500~1100 1250~2000	0.40		14	50 @ 1163, 1189	10	317.5x90.9x38.1		Y	UHF	High	Band Reject
205	RCC13500-1000A1	13500	8000~12050 14900~20000	1.50	0.5	15	30 @ 13000~14000	20	35.05x16.00x13.46		Y	Ku Band	High	Band Reject
206	RCC1396-278A1	1396	1257~1535	3.00		14	35 @ 1257~1535	5	120x100x43		Y	L Band	High	Band Reject
207	RCC14250-500A1	14250	8000~13400 15000~20000	1.50	0.5	15	30 @ 14000~14500	20	35.05x16.00x13.46		Y	Ku Band	High	Band Reject
208	RCC1575-15A1	1575.42	1428~1452	0.50	0.35	13	50 @ 1568~1582.875	20	192.79x65.79x31.75		Y	L1 Band	High	Band Reject
209	RCC1575-15A2	1575.42	1428~1452	0.50	0.35	13	50 @ 1568~1582.875	20	192.79x65.79x31.75		Y	L1 Band	High	Band Reject
210	RCC1575-15A3	1575.4375	1428~1452	0.50	0.35	13	50 @ 1568~1582.875	20	193x45x38		Y	L1 Band	High	Band Reject
211	RCC17500-1000A1	17500	8000~15950 18950~20000	1.50		15	30 @ 17000~18000	20	35.05x16.00x13.46		Y	Ku Band	High	Band Reject
212	RCC2450-100A1	2450	2400~2500	1.50		12	40 @ 2400~2500	200	290x126x39		Y	ISM	High	Band Reject
213	RCC2450-105A1	2450	2425~2475	2.00		12	40 @ 2425~2475		70x35x34		Y	ISM	High	Band Reject
214	RCC2593-194A1	2593	2496~2590	1.50		10	70 @ 2496~2590	5	208x4x5x26		Y	LTE	High	Band Reject
												Band Type	Frequency	Type
