Low Power RF Termination

Designed to absorb RF energy and prevent signal reflections, Low Power RF Terminations are essential passive components used to maintain system stability and integrity in RF signal paths. By properly terminating unused ports, these devices help minimize standing waves and protect sensitive equipment from potential damage due to mismatched loads.

  • Broadband – Covers DC MHz to 6000 MHz
  • Power Levels from 2W to 20W
  • IBWave Supported
Low power RF terminations

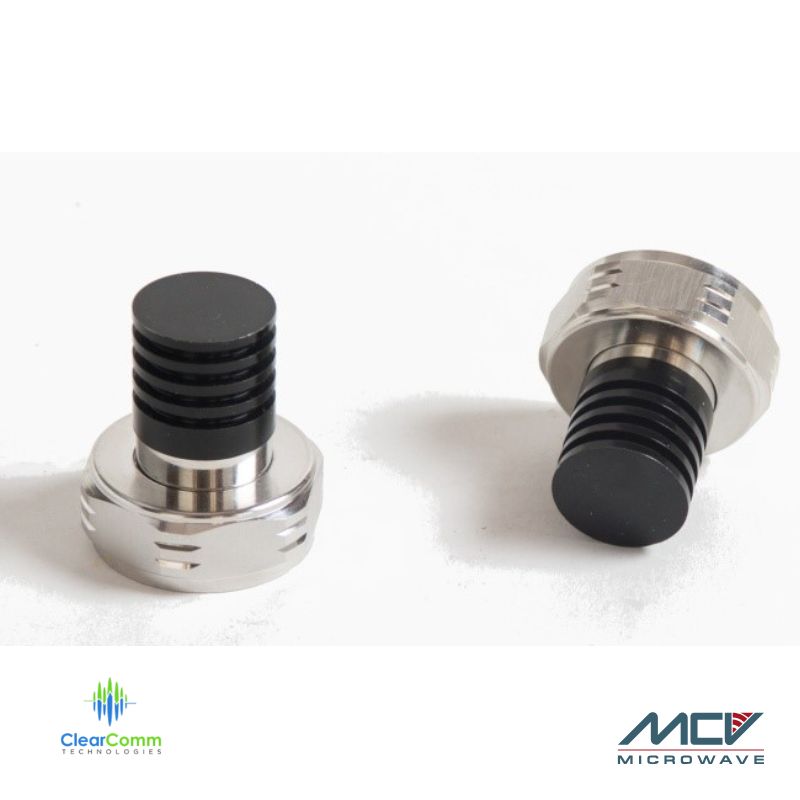

ClearComm Low Power RF Terminations by MCV

ClearComm low power RF terminations by MCV are precision-engineered for low VSWR, excellent broadband performance, and reliable power dissipation in compact designs. Ideal for low-power applications such as test setups, wireless infrastructure, and compact RF modules, our terminations are available in various connectorized formats to suit diverse integration needs. Whether used in lab environments or deployed in field systems, MCV terminations deliver consistent performance and ensure clean, efficient signal termination where it’s needed most.

Low power RF termination models

Model Number Power Handling Connector
CCTM-010 1W Avg. / 250W Peak @ 25°C 7/16 DIN Male
CCTM-011 2W Avg. / 250W Peak @ 25° C Type ‘N’ Male
CCTM-012 5W Avg. / 1kW Peak @ 25°C 7/16 DIN Male
CCTM-013 5W Avg. / 1kW Peak @ 25°C Type ‘N’ Male
CCTM-014 10W Avg. / 1kW Peak @ 25°C 7/16 DIN Male
CCTM-015 10W Avg. / 1kW Peak @ 25°C Type ‘N’ Male
CCTM-016 20W Avg. / 1kW Peak @ 25°C 7/16 DIN Male
CCTM-017 20W Avg. / 1kW Peak @ 25°C Type ‘N’ Male
Request a Quote

FAQ about low power RF termination

What is a Low Power RF Termination?

A Low Power RF Termination is a passive component used to absorb RF signals at the end of a transmission line or port, preventing signal reflection and ensuring proper impedance matching in low-power RF systems.

Why is RF termination necessary?

RF terminations prevent reflected signals (which can cause standing waves) by absorbing excess RF energy, protecting sensitive components and maintaining signal integrity.

What does “low power” mean in RF terminations?

“Low power” typically refers to terminations designed to handle RF power levels below 1–5 watts, depending on the application. These are used in test setups, signal distribution, and other low-power environments.

Where are Low Power RF Terminations used?

Common applications include:

  • RF test equipment

  • Antenna ports not in use

  • Unused splitter/combiners ports

  • Communication systems and RF labs

What is the typical impedance of an RF termination?

Most RF terminations are designed for 50 ohms or 75 ohms, depending on the system. This ensures proper impedance matching to minimize signal reflections.

Can I use a low power termination on a high-power system?

No, using a low power termination on a high-power system can lead to overheating, damage, or even failure of the termination. Always match the termination to the expected power level.

What frequency range can low power terminations handle?

Frequency ranges vary by model, but many support from DC to several GHz. Always check the manufacturer’s specifications to ensure compatibility with your frequency band.

What types of connectors are used with low power RF terminations?

Common connector types include:

  • SMA

  • BNC

  • N-type

  • TNC

The connector type should match the port it’s terminating.

What materials are used in low power terminations?

They typically use resistive elements made of carbon, metal film, or ceramic materials, encased in metal housings for RF shielding and durability.

How do I choose the right low power RF termination?

Key factors to consider:

  • Impedance (50 or 75 ohms)

  • Frequency range

  • Power rating (watts)

  • Connector type

  • VSWR (low is better, e.g., ≤ 1.2:1)

Choose one that matches your system’s requirements for reliable performance.

What makes MCV’s ClearComm low power RF terminations reliable?

MCV’s terminations are built with precision for excellent broadband absorption, low reflection (VSWR), and durable connectorized housings—ideal for demanding RF environments like test labs, wireless systems, and aerospace platforms.

How can I order ClearComm low power terminations from MCV Microwave?

To place an order for ClearComm low power RF terminations or any other RF products please contact us and we will help you!
