Ceramic Monoblock Duplexers

Ceramic Monoblock Duplexers are compact, high-performance RF components designed to enable simultaneous transmission and reception over a single antenna by separating uplink and downlink frequency bands with exceptional precision. Utilizing advanced ceramic resonator technology in a monolithic block design, these duplexers provide superior frequency selectivity, low insertion loss, and excellent isolation between transmit and receive paths.

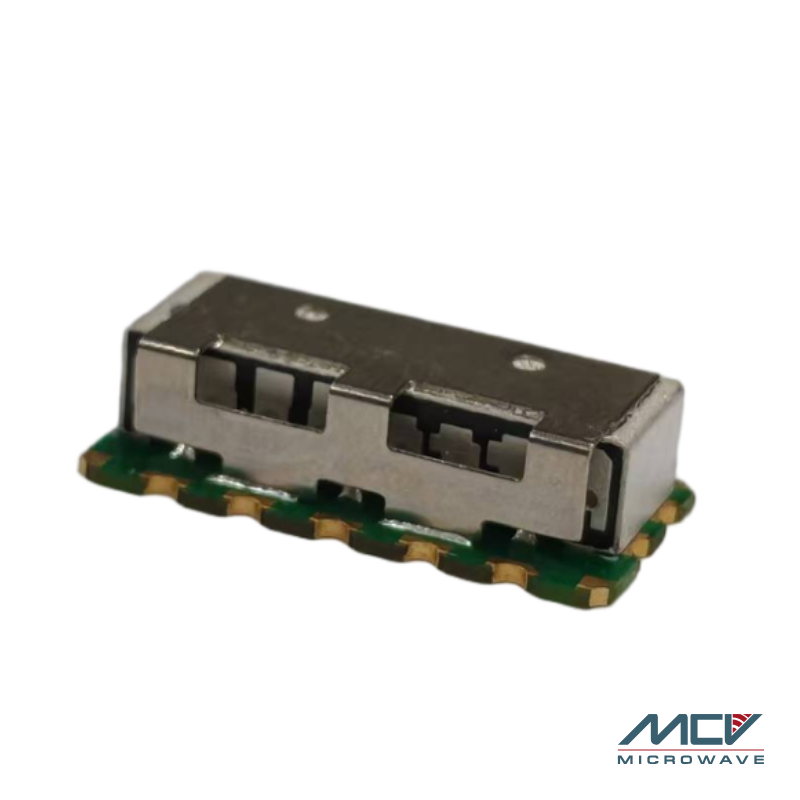

MCV Ceramic Monoblock Duplexers

MCV’s Ceramic Monoblock Duplexers combine ruggedness and reliability with cutting-edge RF performance, making them ideal for demanding applications in wireless infrastructure, cellular networks, and advanced communication systems. Their compact monoblock design optimizes space efficiency while maintaining robust environmental resistance, including temperature stability and vibration tolerance.

Available over a wide frequency range, MCV duplexers support various cellular bands and wireless protocols, ensuring compatibility with modern and evolving communication standards. These duplexers are engineered to minimize signal interference and maximize network capacity, delivering superior signal quality and system reliability in both indoor and outdoor environments.

MCV Ceramic Monoblock Duplexers are precision manufactured to meet stringent quality standards and offer consistent performance for mission-critical RF systems.

Frequency:

Form factor:

Power:

Band type:

wdt_ID	Part Number	Frequency	Form factor	Power	Low Band Frequency Range	Low Band Insertion Loss	Low Band Ripple	Low Band Return Loss	Low Band Attenuation	High Band Frequency Range	High Band Insertion Loss	High Band Ripple	High Band Return Loss	High Band Attenuation	Input Power (can drop)	Dimensions	Keep this part?	Data sheet exists?	Band type
1	DCM1747-1842-75A1	High	Monoblock	Low	1710~1785	3.50	2.40	15	48 @ 1805~1880	1805~1880	3.50	2.40	15	48 @ 1710~1785	5	55x35x20		Y
6	DCM1950-2140-60A1	High	Monoblock	Low	1920~1980	2.00	0.70	15	55 @ 2110~2170	2110~2170	2.00	0.70	15	55 @ 1920~1980	2	46.00x39.00x12.30		Y
8	DCM638-806-14A1	Low	Monoblock	Low	631~645	1.80	0.50	15	70 @ 568 70 @ 708	799~813	1.80	0.50	15	70 @ 736 70 @ 876	15	80x70x20		Y
11	DCM902-947-25A1	Low	Monoblock	Low	890~915	2.00		14	65 @ 935~960	935~960	2.00		14	65 @ 880~915	40	100x49.5x24		Y
16	DNM1745-2145-70A1	High	Monoblock	Low	1710~1780	2.00		15	65 @ 2110~2180	2110~2180	2.00		18	50 @ 1710~1780	5	60.0x11.0x9.5	Y	Y
17	DNM1747-1842-75A1	High	Monoblock	Low	1710~1785	3.20		15	50 @ 1805~1880	1805~1880	3.20		15	50 @ 1710~1785	3	40.5x10.3x8.0		Y	LTE band-3
18	DNM1747-1842-75A2	High	Monoblock	Low	1710~1785	3.20		15	50 @ 1805~1880	1805~1880	3.20		15	50 @ 1710~1785	3	40.5x11.0x8.0		Y	LTE band-3
19	DNM1747-1842-75B1	High	Monoblock	Low	1710~1785	3.80		10	45 @ 1805~1880	1805~1880	4.30		10	45 @ 1710~1785	3	40.0x5.95x5.90		Y	LTE band-3
20	DNM1747-1842-75C1	High	Monoblock	Low	1710~1785	4.20		15	60 @ 1805~1880	1805~1880	4.20		15	65 @ 1710~1785		74x48x14.5		Y	LTE band-3
21	DNM1747-1842-75D1	High	Monoblock	Low	1710~1785	3.20		15	55 @ 1805~1880	1805~1880	3.20		15	55 @ 1710~1785	3	46x10x8.3		Y	LTE band-3
22	DNM1747-1842-75E1	High	Monoblock	Low	1710~1785	3.00		15	55 @ 1805~1880	1805~1880	3.00		15	55 @ 1710~1785	2	42x9.5x8.4		Y	LTE band-3
23	DNM1747-1842-75E2	High	Monoblock	Low	1710~1785	3.00		15	55 @ 1805~1880	1805~1880	3.00		15	44 @ 1710~1785	2	46x9.5x8.4		Y	LTE band-3
24	DNM1747-1842-75E3	High	Monoblock	Low	1710~1785	3.00		15	55 @ 1805~1880	1805~1880	3.00		15	55 @ 1710~1785	2	60.0x10.5x10.0		Y	LTE band-3
27	DNM1800-2250-100A1	High	Monoblock	Low	1750~1850	1.00		14	25 @ 2000~2100 25 @ 2200~2300	2200~2300	1.00		14	43 @ 1750~1850 43 @ 2000~2100	2	27.8x8.8x6.2	Y	Y
28	DNM1800-2250-100A2	High	Monoblock	Low	1750~1850	1.00	0.50	14	41 @ 2200~2300	2200~2300	1.00	0.50	14	43 @ 1750~1850	2	27.8x8.8x6.2	Y	Y
29	DNM1857-1937-15A1	High	Monoblock	Low
30	DNM1880-1960-60A1	High	Monoblock	Low	1850~1910	3.50		10	40 @ 1930~1990	1930~1990	4.30		10	58 @ 1850~1910		22.5x6.2x3.9		Y
31	DNM1880-1960-60B1	High	Monoblock	Low	1850~1910	3.00		11	30 @ 1930~1990	1930~1990	3.50		10	35 @ 1850~1910		22.5x6.2x4.1		Y
32	DNM1880-1960-60C1	High	Monoblock	Low	1850~1910	4.00		12	43 @ 1930~1990	1930~1990	4.00		12	43 @ 1850~1910		39.7x5.56x5.80		Y
33	DNM1880-1960-60D1	High	Monoblock	Low	1850~1910	3.50		13	45 @ 1930~1960 50 @ 1990 42 @ 2113.6~2173.6 11 @ 3720~3820	1930~1990	3.50		13	50 @ 1850~1910 40 @ 1770~1830 12 @ 2033.6~2093.6 35 @ 2297.2~2357.2 32 @ 2205.4~2265.4 32 @ 2113.6~2173.6	5	20.0x7.1x4.6		Y
34	DNM1880-1960-60E1	High	Monoblock	Low	1850~1910	3.50		15	40 @ 1930~1990	1930~1990	4.00		15	50 @ 1850~1910	3	42.00x9.90x8.00		Y
37	DNM1882-1962-65A1	High	Monoblock	Low	1850~1915	3.50	2.50	15	50 @ 1930~1995	1930~1995	3.50	2.50	18	50 @ 1850~1915	5	60.0x11.0x9.5		Y	LTE band-25
38	DNM1950-2140-60A1	High	Monoblock	Low	1920~1980	2.50		10	40 @ 2110~2170	2110~2170	3.00		10	50 @ 1920~1980	2	14.2x6.7x2.8		Y	LTE band-1
43	DNM2050-2250-100A1	High	Monoblock	Low	2000~2100	1.00	0.50	14	25 @ 2200~2300 25 @ 1750~1850	2200~2300	1.00	0.50	14	43 @ 2000~2100 43 @ 1750~1850	2	27.80x7.50x6.20		Y	LTE
44	DNM2050-2250-100A2	High	Monoblock	Low	2000~2100	1.00	0.50	14	41 @ 2200~2300	2200~2300	1.00	0.50	14	43 @ 2000~2100	2	27.8x8.8x6.2		Y	LTE
45	DNM2050-2250-100A3	High	Monoblock	Low	2000~2100	1.00	0.50	14	41 @ 2200~2300	2200~2300	1.00	0.50	14	43 @ 2000~2100	2	27.8x8.8x6.2		Y	LTE
48	DNM2310-2355-10A1	High	Monoblock	Low	2305~2315	3.00	1.00	12	43 @ 2350~2360	2350~2360	3.00	1.00	12	43 @ 2305~2315	2	27.8x8.0x6.2		Y	LTE band-30
49	DNM2310-2355-10B1	High	Monoblock	Low	2305~2315	4.00	1.00	14	50 @ 2350~2360	2350~2360	4.00	1.00	14	50 @ 2305~2315	3	40.2x6.9x8.5		Y	LTE band-30
50	DNM2310-2355-10B2	High	Monoblock	Low	2350~2360	4.00	1.00	14	35 @	2305~2315	4.00	1.00	14	35 @		40.5x8.1x6.0		Y	LTE
51	DNM2315-2409-15A1	High	Monoblock	Low	2402~2417	3.00		14		2308~2323	3.00		14				Convert	Y
52	DNM2316-2410-20A1	High	Monoblock	Low													Convert	Y
53	DNM2317-2388-30A1	High	Monoblock	Low													Convert	Y
54	DNM2338-2432-20A1	High	Monoblock	Low	2328~2348	3.00		14	50 @ 2422~2442 35 @ 2500~3500	2422~2442	3.00		14	50 @ 2328~2348 30 @ 2500~3500	2	40.4x8.0x6.1	Y	Y	LTE
55	DNM2350-2450-70A1	High	Monoblock	Low	2415~2485	2.40		15	45 @ 2415~2485	2415~2485	2.40		15	45 @ 2315~2385	3	40.0x11.5x8.5	Y	Y	LTE
59	DNM2358-2452-24A1	High	Monoblock	Low	2346~2370	3.00		14	50 @ 2440~2464	2440~2464	3.00		14	50 @ 2346~2370	2	40.4x8.0x6.1	Y	Y	LTE
62	DNM2535-2655-70A1	High	Monoblock	Low	2500~2570	2.20	1.00	16	50 @ 2620~2690	2620~2690	2.20	1.00	16	50 @ 2500~2570	3	40.0x9.5x8.0		Y	LTE band-7
64	DNM3318-3394-12A1	High	Monoblock	Low	3312~3324	3.60		14	35 @ 0.1~2500 45 @ 2680 40 @ 2996 15 @ 3242 50 @ 3388~3500 35 @ 4000~4500 20 @ 4500~5000	3388~3400	3.60		14	35 @ 0.1~2500 30 @ 2696 35 @ 3215 50 @ 3312~3324 30 @ 4000~4500 19 @ 4500~5000	2	41.33x7.8x6.3	Convert	Y
66	DNM3415-3515-30A1	High	Monoblock	Low	3400~3430	3.00		10	40 @ 3500~3530	3500~3530	3.00		10	40 @ 3400~3430		22.5x6.0x4.1	Convert	Y
67	DNM3415-3515-30B1	High	Monoblock	Low	3400~3430	3.00		14	35 @	3500~3530	3.00		14	35 @		39.73x7.95x5.85	Convert	Y
68	DNM3415-3515-30B2	High	Monoblock	Low	3400~3430	3.00		14	35 @	3500~3530	3.00		14	35 @		39.73x7.95x5.72	Convert	Y
69	DNM3415-3515-30B3	High	Monoblock	Low	3400~3430	3.00		14	35 @ DC ~ 2452 45 @ 2748~2949 40 @ 3075~3189 15 @ 3470.5~3500.5 35 @ 3953~4953	3500~3530	3.00		14	35 @ DC ~ 2453 35 @ 2802~3045 30 @ 3381~3408 50 @ 3400~3430 35 @ 3953~4953		39.73x7.95x5.72	Convert	Y
70	DNM3420-3520-40A1	High	Monoblock	Low	3400~3440	3.00		10	55 @ 3500~3540	3500~3540	3.00		10	55 @ 3400~3440			Convert	Y
71	DNM3420-3520-40B1	High	Monoblock	Low	3400~3440	3.00		10	55 @ 3500~3540	3500~3540	3.00		10	55 @ 3400~3440		39.73x6.0x5.8	Convert	Y
72	DNM3420-3520-40C1	High	Monoblock	Low	3400~3440	3.00		14	50 @ 3500~3540	3500~3540	3.00		14	50 @ 3400~3440		39.73x7.95x5.85	Convert	Y
73	DNM3421-3521-42A1	High	Monoblock	Low	3399.5~3441.5	3.00		14	35 @ 3499~3541 35 @ 4000	3499.5~3541.5	3.00		14	35 @ 3399~3441 35 @ 4000		30.0x7.0x4.5	Convert	Y
74	DNM3424-3524-24A1	High	Monoblock	Low	3412~3436	2.00		14	30 @ 3512~3536	3512~3536	2.00		14	30 @ 3412~3436	3	27.5x8.5x5.9	Convert	Y
75	DNM3425-3525-50A1	High	Monoblock	Low	3398~3450	3.00		10	40 @ 3498~3550	3498~3550	3.00		10	40 @ 3398~3450		22.0x5.4x3.85		Y
76	DNM3425-3525-50B1	High	Monoblock	Low	3400~3450	3.00		10	45 @ 3500~3550	3500~3550	3.00		10	45 @ 3400~3450		22.5x5.9x3.85		Y
77	DNM3427-3527-53A1	High	Monoblock	Low	3400~3453	2.00		14	60 @ <3150	3500~3553	2.00		14	45 @ >3700	2	40.0x8.5x6.5		Y
78	DNM3435-3535-30A1	High	Monoblock	Low	3420~3450	3.00		14	50 @ 3520~3550 35 @	3520~3550	3.00		14	50 @ 3420~3450 35 @		40.4x8.0x6.1		Y
79	DNM3437-3537-25A1	High	Monoblock	Low	3425~3450	3.00		12	35 @ 3525~3550 35 @	3525~3550	3.00		12	35 @ 3525~3550 35 @		39.73x7.90x5.85		Y
80	DNM3437-3537-25B1	High	Monoblock	Low	3420~3450	3.60		14	50 @ 3520~3550 35 @	3520~3550	3.60		14	50 @ 3420~3450 35 @	2	41.33x7.8x6.3		Y
81	DNM3437-3537-25C1	High	Monoblock	Low	3425~3450	2.70		14	50 @ 3525~3550 35 @	3525~3550	2.70		14	50 @ 3425~3450 35 @	2	41.33x7.8x6.3		Y
82	DNM3442-3542-15A1	High	Monoblock	Low	3435~3450	3.00		14	50 @ 3535~3550 35 @	3535~3550	3.00		14	50 @ 3435~3450 50(30) @ 3635~3650 35 @ 3362~3377 35 @ 2843~2858 35 @ 4000~5000		39.73x7.9x5.85		Y
83	DNM3442-3542-15A2	High	Monoblock	Low	3435~3450	3.00		14	40 @ 4000	3535~3550	3.00		14	40 @ 4000		28.9x5.7x
84	DNM3442-3542-15B1	High	Monoblock	Low	3435~3450	3.20		14	50 @ 3535~3550 - @ 3407~3422 - @ 3463~3478 30 @ 3365~3370 30 @ 3505~3520 50 @ 3335~3350 30 @ 3119~3134 35 @ 2803~2818 35 @ 4000~5000 5 @ 6877.5~6892.5	3535~3550	3.00		14	50 @ 3435~3450 35 @		39.73x7.90x5.85		Y
85	DNM3450-3550-20A1	High	Monoblock	Low
86	DNM3452-3552-24A1	High	Monoblock	Low	3440~3464	2.00		14	30 @ 3540~3564	3540~3564	2.00		14	30 @ 3440~3464		27.5x8.5x5.9		Y
87	DNM3462-3562-25A1	High	Monoblock	Low	3450~3475	3.00		14	35 @ 3550~3575 35 @	3550~3575	3.00		14	35 @ 3450~3475 35 @		39.73x7.90x5.85		Y
88	DNM3462-3562-25A2	High	Monoblock	Low	3450~3475	3.00		14	35 @ 3550~3575 35 @	3550~3575	3.00		14	35 @ 3450~3475 35 @		40.00x7.90x5.72		Y
89	DNM3462-3562-27A1	High	Monoblock	Low	3449~3476	3.00		14	35 @ 3549~3576 35 @	3549~3576	3.00		14	35 @ 3499~3476 35 @		39.73x8.10x5.85		Y
90	DNM3462-3562-27A2	High	Monoblock	Low	3449~3476	3.00		14	35 @ 3549~3576 35 @	3549~3576	3.00		14	35 @ 3499~3476 35 @		39.73x7.90x5.72		Y
91	DNM3462-3562-27B1	High	Monoblock	Low	3449~3476	3.00		14	50 @ 3549~3576 35 @	3549~3576	3.00		14	50 @ 3549~3576 40 @ 3065~3092 35 @ 4000~5000		39.73x8.10x5.85		Y
92	DNM3462-3562-27B2	High	Monoblock	Low	3449~3476	3.00		14	35 @ 3549~3576 35 @	3549~3576	3.00		14	35 @ 3499~3476 35 @		39.73x7.90x5.85		Y
93	DNM3462-3562-27B3	High	Monoblock	Low	3449~3476	3.00		14	35 @ 3549~3576 35 @	3549~3576	3.00		14	35 @ 3499~3476 35 @		39.73x7.90x5.85		Y
94	DNM3462-3562-27B4	High	Monoblock	Low	3449~3476	3.00		14	35 @ 3549~3576 35 @ 4000	3549~3576	3.00		14	35 @ 3499~3476 35 @ 4000		28.9x5.5x4.3		Y
95	DNM3475-3575-50A1	High	Monoblock	Low	3450~3500	3.00		10	40 @ 3550~3600	3550~3600	3.00		10	40 @ 3450~3500		22.0x5.4x3.85		Y
96	DNM3475-3575-50A2	High	Monoblock	Low	3450~3500	3.00		10	40 @ 3550~3600	3550~3600	3.00		10	40 @ 3450~3500		22.5x6.0x4.1		Y
97	DNM3475-3575-50B1	High	Monoblock	Low	3450~3500	3.00		10	45 @ 3550~3600	3550~3600	3.00		10	45 @ 3450~3500		22.5x5.9x3.85		Y
98	DNM3482-3582-31A1	High	Monoblock	Low	3466~3497.5	2.00		14	30 @ 3566~3597.5	3566~3597.5	2.00		14	30 @ 3466~3497.5		27.5x8.5x5.9		Y
99	DNM3487-3587-25A1	High	Monoblock	Low	3475~3500	3.00		14	35 @ 3575~3600 35 @	3575~3600	3.00		14	35 @ 3475~3500 35 @		39.73x7.90x5.85		Y
100	DNM3525-3625-50A1	High	Monoblock	Low	3500~3550	3.00		10	45 @ 3600~3650	3600~3650	3.00		10	45 @ 3500~3550		22.50x6.25x3.95		Y
101	DNM3525-3625-50A2	High	Monoblock	Low	3500~3550	3.00		10	45 @ 3600~3650	3600~3650	3.00		10	40 @ 3500~3550		22.5x4.2x3.85		Y
102	DNM3587-3687-25A1	High	Monoblock	Low	3675~3700	3.00		14	50 @ 3575~3600 35 @ DC~2500 15 @ 3605 40 @ 3359 45 @ 3043 35 @ 3953~4953 5 @ 7357	3575~3600	3.00		14	50 @ 3675-3700 35 @ 3402 40 @ 2883 50 @ 3675~3700 35 @ 4000~5000		40.00x7.85x5.72		Y
103	DNM3587-3687-25A2	High	Monoblock	Low	3675~3700	3.00		14	50 @ 3575~3600 35 @ DC~2500 15 @ 3605 40 @ 3359 45 @ 3043 35 @ 3953~4953 5 @ 7357	3575~3600	3.00		14	50 @ 3675-3700 35 @ 3402 40 @ 2883 50 @ 3675~3700 35 @ 4000~5000		40.00x7.85x5.72		Y
104	DNM3587-3687-25B1	High	Monoblock	Low	3575~3600	4.00		14	50 @ 3675~3700 35 @	3675~3700	4.00		14	50 @ 3575~3600 35 @		39.73x7.85x5.85		Y
107	DNM3647-3747-25A1	High	Monoblock	Low	3635~3660	2.70		2	45 @ 3735~3760 30 @ 5000	3735~3760	2.00		2	45 @ 3635~3660		27.5x8.5x5.9		Y
111	DNM707-781-18A1	Low	Monoblock	Low	698~716	3.00	1.50	15	65 @ 728~746	728~746	3.00	1.50	18	50 @ 698~716	5	60.0x18.0x9.5		Y	LTE band-12
112	DNM718-773-30A1	Low	Monoblock	Low	703~733	3.00	1.50	15	70 @ 758~788	758~788	3.00	1.50	15	70 @ 703~733	5	59x18.5x9.7		Y	LTE
113	DNM725-780-45A1	Low	Monoblock	Low	703~748	3.50	2.00	10	10 @ 758~803	758~803	3.50	2.00	10	50 @ 703~748	5	59x18.5x9.7		Y	LTE band-28
114	DNM763-793-10A1	Low	Monoblock	Low	758~768	2.70		15	35 @ 788~798	788~798	2.70		15	35 @ 758~768	33	20.3x10.5x4.0	Y	Y	LTE band-14
115	DNM763-793-10A2	Low	Monoblock	Low	758~768	2.00		15	35 @ 788~798	788~798	2.00		15	35 @ 758~768	33	26.0x12.5x6.0	Y	Y	LTE band-14
118	DNM806-847-30A1	Low	Monoblock	Low	791~821	3.00	1.50	14	45 @ 832~862	832~862	3.00	1.50	14	45 @ 791~821	2	39.8x15.5x8.0		Y	LTE band-20
119	DNM815-860-18A1	Low	Monoblock	Low	806~824	2.50	1.00	15	65 @ 851~869	851~869	2.50	1.00	18	50 @ 806~824	5	60.0x16.0x9.5	Y	Y	LTE band-27
120	DNM827-902-44A1	Low	Monoblock	Low
121	DNM833-878-32A1	Low	Monoblock	Low	817~849	3.20		15	30 @ 777~787 55 @ 862~894	862~894	3.20		15	45 @ 777~787 60 @ 817~849	10	60.0x12.9x14.1	Convert	Y	LTE
122	DNM836-881-25A1	Low	Monoblock	Low	824~849	2.50	1.50	11	40 @ 869~894	869~894	3.50	2.00	10	50 @ 824~849		22x8.4x3.65		Y	LTE band-5
123	DNM836-881-25B1	Low	Monoblock	Low	824~849	2.50	1.50	10	60 @ 824~849	869~894	3.50	2.00	10	60 @ 824~849	2	22.0x9.6x3.85		Y	LTE band-5
124	DNM836-881-25C1	Low	Monoblock	Low	924~849	2.50	1.50	15	65 @ 869~894	869~894	2.50	1.50	18	50 @ 824~849
130	DNM897-942-35A1	Low	Monoblock	Low	880~915	3.50	2.50	14	50 @ 925~960	925~960	3.50	2.50	14	50 @ 880~915	3	40.5x14x8.0		Y	LTE band-8
136	DNM1030-1090-15A1	High	Monoblock	Low	1022.5~1037.5	2.50		15	55 @ 510 50 @ 770 37 @ 980 37 @ 1080 55 @ 1280	1082.5~1097.5	2.50		15	55 @ 570 45 @ 850 37 @ 1040 37 @ 1140 55 @ 1340 45 @ 1450	1	15.6x8.5x3.8	Y	Y	L Band
137	DNM1175-1227-40A1	High	Monoblock	Low	1163.45~1187.45	1.30		14	25 @ 1207~1247	1207.42~1247.42	1.30		14	25 @ 1163~1187	4	24.3x11.3x8.5	Y	Y	L Band
138	DPM1208-1567-98A1	High	Monoblock	Low	1159~1257	0.80		15	30 @ 1520~1615 15 @ 2500~4000 13 @ 1105 10 @ 1320	1520~1615	0.80		15	30 @ 1159~1257 15 @ 2500~4000 11.5 @ 1460 11.5 @ 1695	2	26.9x16.5x8.9		Y	L Band
139	DPM1227-1555-20A1	High	Monoblock	Low	1217~1237	1.30		14	30 @ 1525~1585 3 @ 1180	1525~1585	1.00		14	30 @ 1217~1237	1	11.18x10.16x3.18		Y	GPS
140	DPM1227-1575-24A1	High	Monoblock	Low
141	DPM1227-1575-45A1	High	Monoblock	Low	1205~1250	1.50		20	30 @ 1560~3000	1550~1600	1.50		20	30 @ 1212~1242 30 @ 2000~3000	3	28.0x17.0x9.3		Y	GPS
142	DPM1227-1575-45B1	High	Monoblock	Low	1205~1250	1.00		20	30 @ 1560~3000	1550~1600	1.00		20	30 @ 1212~1242 30 @ 2000~3000	3	26x16x9		Y	GPS
143	DPM1230-1575-140A1	High	Monoblock	Low	1160~1300	1.00		15	20 @ 664~804 5 @ 1318~1459	1545~1615	1.00		15	12 @ 1160~1300 5 @ 1626~1636	3	34.3x17.0x9.5		Y	GPS
144	DPM1230-1577-140A1	High	Monoblock	Low	1160~1300	2.00		18	30 @ 664~804 30 @ 1318~1526 40 @ 1526~1636 40 @ 1670~1680	1544~1610	2.00		18	35 @ 1216~1283 30 @ 1377~1444 20 @ 1526~1536 20 @ 1626~1636	5	41x46x13.5		Y	GPS
145	DPM1230-1577-140A2	High	Monoblock	Low	1160~1300	2.10		15	32 @ 664~804 20 @ 806~1100 20 @ 1100 15 @ 1319~1458 40 @ 1459~1487 50 @ 1526~1610 55 @ 1626	1544~1610	2.10		15	50 @ 1216~1283 50 @ 1336~1443 10 @ 1526~1536 15 @ 1626~1636 30 @ 1670~1680 32 @ 2032~2098	3	41.0x46.0x14.5		Y	GPS
146	DPM1230-1577-140A3	High	Monoblock	Low	1160-1300	2.00		15	35 @ 664~804 20 @ 806~1100 25 @ 1103~1127 20 @ 1131.6 18 @ 1319~1525 40 @ 1526~1636 40 @ 1670~1680 35 @ 2030~2100	1544~1610	2.20		15	35 @ 664~804 50 @ 1216~1283 50 @ 1377~1444 20 @ 1526~1536 20 @ 1626~1636 30 @ 1670~1680 35 @ 2030~2100	3	41.0x35.5x14.5		Y	GPS
147	DPM1232-1567-67A1	High	Monoblock	Low	1198.5~1265.5	0.60		15	10 @ DC~1065 10 @ 1400~1425 25 @ 1499~1635 15 @ 1710~2500	1533.5~1600.5	0.60		15	10 @ DC~1065 10 @ 1400~1425 25 @ 1164~1300 15 @ 1710~2500	3	24.3x11.5x8.3		Y
148	DPM1232-1567-135A1	High	Monoblock	Low	1164.5~1299.5	0.60		15	25 @ 1499~1635 10 @ DC~1065 10 @ 1400~1425 15 @ 1710~2500	1499.5~1634.5	0.60		15	25 @ 1164~1300 10 @ DC~1065 10 @ 1400~1425 15 @ 1710~2500	3	45x25x17		Y
149	DPM1232-1577-67A1	High	Monoblock	Low	1198.5~1265.5	0.60		15	10 @ DC~1065 10 @ 1400~1425 25 @ 1499~1635 15 @ 1710~2500	1533.5~1600.5	0.60		15	10 @ DC~1065 10 @ 1400~1425 25 @ 1164~1300 15 @ 1710~2500	3	24.3x9.5x8.3		Y
150	DPM1249-1577-67A1	High	Monoblock	Low	1216~1283					1544~1610	1.20		18	65 @ 1216~1283 60 @ 1377~1444 20 @ 1526~1536 20 @ 1626~1636 30 @ 1670~1680		41.0x46.0x13.5		Y	GPS
151	DPM1732-2132-45A1	High	Monoblock	Low	1710~1755	1.50		15	20 @ 2110~2155	2110~2155	1.50		15	56 @ 1710~1755	5	65x15.0x12		Y	LTE band-4
152	DPM1732-2132-45B1	High	Monoblock	Low	1710~1755	1.50		16	60 @ 2110~2155	2110~2155	1.50		16	56 @ 1710~1755	3	43.5x13.0x9.5		Y	LTE band-4
153	DPM1732-2132-45B2	High	Monoblock	Low	1710~1755	1.50		16	60 @ 2110~2155	2110~2155	1.50		16	60 @ 1710~1755	2	83.0x15.0x17.0		Y	LTE band-4
154	DPM1732-2132-45C1	High	Monoblock	Low	1710~1755	2.00		15	55 @ 2110~2155	2110~2155	2.00		15	55 @ 1710~1755	3	46.0x14.0x9.5		Y	LTE band-4
155	DPM1747-1842-75A1	High	Monoblock	Low	1710~1785	3.60		12	30 @ 1805~1880	1805~1880	3.60		12	30 @ 1710~1785	2	30.5x9.3x5.5		Y	LTE band-3
156	DPM1747-1842-75B1	High	Monoblock	Low
157	DPM1747-1842-75C1	High	Monoblock	Low	1710~1785	2.50		14	50 @ 1805~1880	1805~1880	2.50		14	50 @ 1710~1785	3	44x13.5x9.5		Y	LTE band-3
158	DPM1747-1842-75D1	High	Monoblock	Low	1710~1785	3.50		10	45 @ 1805~1880	1805~1880	3.50		10	48 @ 1710~1785 25 @ 1920~1980	5	53x15x9.5		Y	LTE band-3
159	DPM1767-1862-35A1	High	Monoblock	Low	1749.9~1784.9	3.00	2.30	15	45 @ 1844.9~1879.9	1844.9~1879.9	3.00	2.30	15	45 @ 1749.9~1784.9	3	30.5x9.3x5.5		Y	LTE
160	DPM1880-1960-60A1	High	Monoblock	Low	1850~1910	3.20		15	50 @ 1930~1990 20 @ DC~1700	1930~1990	3.20		15	50 @ 1850~1910 25 @ DC~1700	3	42.5x17.5x8.8		Y	LTE band-2
161	DPM1880-1960-60B1	High	Monoblock	Low	1850~1910	3.50		14	57 @ 1930~1990 13 @ 1920	1930~1990	4.00		14	57 @ 1850~1910 18 @ 1920	3	49.0x14.0x8.0		Y	LTE band-2
162	DPM1880-1960-60C1	High	Monoblock	Low	1850~1910	3.50		14	57 @ 1930~1990 13 @ 1920	1930~1990	4.00		14	57 @ 1850~1910 18 @ 1920		49.0x14.0x8.0		Y	LTE band-2
163	DPM1880-1960-60D1	High	Monoblock	Low	1850~1910	5.00		11	53 @ 1850~1990	1930~1990	5.00		11	53 @ 1850~1990	5	44x14x10.2		Y	LTE band-2
164	DPM1880-2250-100A1	High	Monoblock	Low	1750~1850	2.50		15	55 @ 2200~2300	2200~2300	2.50		15	55 @ 1750~1850	2	30.5x8.8x5.5		Y	LTE
165	DPM1882-1962-65A1	High	Monoblock	Low	1850~1915	2.70	2.00	15	25 @ 1930~1995 10 @ 1922.5	1930~1995	2.70	2.00	15	25 @ 1850~1915 10 @ 1922.5	5	42.5x17.5x9.5		Y	LTE
166	DPM1882-1962-65B1	High	Monoblock	Low	1850~1915	3.00	2.20	15	25 @ 1930~1995 10 @ 1922.5	1930~1995	3.00	2.20	15	25 @ 1850~1915 10 @ 1922.5	5	42.5x17.5x9.5
167	DPM1950-2140-60A1	High	Monoblock	Low	1920~1980	2.00		15	55 @ 2110~2170	2110~2170	2.00		15	55 @ 1920~1980	2	30.0x8.8x4.9		Y	LTE band-1
168	DPM1950-2140-60B1	High	Monoblock	Low	1920~1980	2.00		14	55 @ 2110~2170	2110~2170	2.00		14	55 @ 1920~1980	3	30.00x8.80x5.0		Y	LTE band-1
169	DPM1950-2140-60C1	High	Monoblock	Low	1920~1980	2.30		15	55 @ 2110~2170	2110~2170	2.30		15	55 @ 1920~1980	2	31.0x15.0x5.5		Y	LTE band-1
170	DPM1950-2140-60D1	High	Monoblock	Low	1920~1980	2.00		14	55 @ 1920~1980	2110~2170	2.00		14	55 @ 1920~1980	5	52.0x15.0x9.5		Y	LTE band-1
171	DPM2010-2190-20A1	High	Monoblock	Low	2000~2020	2.50	1.00	18	50 @ 2180~2200	2180~2200	2.50	1.00	18	50 @ 2000~2020	3	43x18x9.5		Y	LTE
172	DPM2050-2250-80A1	High	Monoblock	Low	2010~2090	3.50	1.00	15	65 @ 2200~2300 60 @ 2150	2200~2300	3.50	1.00	15	65 @ 2010~2090 60 @ 2150	2	56x15x5		Y	LTE
173	DPM2050-2250-80B1	High	Monoblock	Low	2000~2100	2.50	1.00	15		2200~2300	2.50	1.00	15		5	57.5x12.5x8.0		Y	LTE
174	DPM2050-2250-80C1	High	Monoblock	Low	2010~2090	2.50	1.00	15	50 @ 2200~2300	2200~2300	2.50	1.00	15	50 @ 2010~2090	2	30.5x9.0x5.0		Y	LTE
175	DPM2310-2355-10A1	High	Monoblock	Low	2350~2360	2.70	0.80	14	45 @ 2310 10 @ 2400 35 @	2305~2315	2.70	0.80	14	10 @ 2265 45 @ 2355 35 @	5	68x17x9.0		Y	LTE band-30
176	DPM2310-2355-10B1	High	Monoblock	Low	2305~2315	2.80	1.00	18	50 @ 2350~2360 30 @ 2095~2110 35 @ 1932~1948 25 @ 2170 & 2620	2350~2360	2.70	1.00	18	50 @ 2305~2315 35 @ 2010~2013 45 @ 1886~1890 35 @ 1980 & 2500	3	44x14x9.5		Y	LTE band-30
177	DPM2132-1732-45A1	High	Monoblock	Low	2110~2155	1.50		16	60 @ 1710~1755	1710~1755	1.50		16	56 @ 2110~2155	3	43.5x13.0x9.5		Y	LTE band-4
181	DPM2535-2655-70A1	High	Monoblock	Low	2500~2570	2.00	1.00	14	45 @ 2620~2690	2620~2690	2.00	1.00	14	45 @ 2500~2570	3	30x9.6x7.4		Y	LTE band-7
182	DPM2535-2655-70A2	High	Monoblock	Low	2500~2570	2.00	1.00	14	45 @ 2620~2690	2620~2690	2.00	1.00	14	45 @ 2500~2570	3	30.5x9.3x7.7		Y	LTE band-7
183	DPM2535-2655-70B1	High	Monoblock	Low	2500~2570	2.20	1.00	16	50 @ 2620~2690	2620~2690	2.20	1.00	16	50 @ 2500~2570	3	42.5x17.5x9.5		Y	LTE band-7
184	DPM2575-2680-30A1	High	Monoblock	Low	2560~2590	2.00	0.50	18	50 @ 2670~2690	2670~2690	2.00	0.50	18	50 @ 2560~2590	4	32.0x13.8x7.5		Y	LTE
185	DPM332-342-05A1	Low	Monoblock	Low	330~335	3.50		16	45 @ 340~345 25 @ DC~280	340~345	3.50		16	45 @ 330~335 25 @ DC~295	3	67.65x28.0x15.0		Y	UHF Band
186	DPM382-392-05A1	Low	Monoblock	Low	380~385	5.45		15	15 @ 390~395 30 @ 350 30 @ 415	390~395	5.45		15	15 @ 380~385 30 @ 425	1	13.5x12.0x5.0		Y	UHF Band
187	DPM382-392-05B1	Low	Monoblock	Low	380~385	3.50		16	45 @ 390~395 25 @ DC~350 25 @ 415~885	390~395	3.50		16	45 @ 380~385 25 @ DC~360 25 @ 425~895	5	67.65x22.5x15.0		Y	UHF Band
188	DPM425-495-30A1	Low	Monoblock	Low	410~440	2.50		15	65 @ 480~510	480~510	2.50		15	65 @ 410~440	3	65.5x26.0x11.0		Y	UHF Band
189	DPM455-465-05A1	Low	Monoblock	Low	452.5~457.5	4.50	2.80	13	55 @ 462.5~467.5	462.5~467.5	4.50	2.80	13	55 @ 452.5~457.5	3	42.5~21.5x9.5		Y	LTE band-31
190	DPM495-425-30A1	Low	Monoblock	Low	410~440	2.50		15	65 @ 480~510	480~510	2.50		15	65 @ 410~440	1	65.5x26.0x11.0		Y	UHF Band
191	DPM634-680-35A1	Low	Monoblock	Low	617~652	3.00	2.00	15	50 @ 663~678	663~678	3.00	2.00	15	50 @ 617~652	5	43x21x9.3		Y	LTE band-71
192	DPM707-737-18A1	Low	Monoblock	Low	698~716	3.00	2.00	15	40 @ 728~746 50 @ 824~960	728~746	3.00	2.00	15	40 @ 698~716 50 @ 824~960	3	42x20x9.5		Y	LTE band-12
193	DPM707-737-18A2	Low	Monoblock	Low	698~716	3.00	2.00	15	40 @ 728~746 50 @ 824~960	728~746	3.00	2.00	15	40 @ 698~716 50 @ 824~960	3	45.0x14.0x9.2		Y	LTE band-12
194	DPM707-737-18B1	Low	Monoblock	Low	698~716	2.50	1.00	15	50 @ 728~746 50 @ 824~960	728~746	2.50	1.00	15	50 @ 698~716 50 @ 824~960	3	44x13.5x9.5		Y	LTE band-12
195	DPM707-737-18C1	Low	Monoblock	Low	698~716	2.50	2.00	15	50 @ 728~746 50 @ 824~960	728~746	2.50	2.00	15	50 @ 698~716 50 @ 824~960	3	45.0x14.0x9.2		Y	LTE band-12
196	DPM707-737-18D1	Low	Monoblock	Low	698~716	2.50	2.00	15	50 @ 728~746	728~746	2.50	2.00	15	50 @ 698~716	3	46.00x14.00x9.20		Y	LTE band-12
197	DPM710-740-06A1	Low	Monoblock	Low	707~713	2.50	0.50	15	50 @ 737~743	737~743	2.50	0.50	15	50 @ 707~713	2	42.5x20.5x9.5		Y	LTE band-17
198	DPM710-740-12A1	Low	Monoblock	Low	704~716	2.50	1.00	15	50 @ 734~746	734~736	2.50	1.00	15	50 @ 704~716	5	42.00x20.00x9.5		Y	LTE band-17
199	DPM710-740-12B1	Low	Monoblock	Low	704~716	2.00	1.00	15	60 @ 734~746	734~746	2.00	1.00	15	60 @ 704~716	3	42.5x20.5x9.5		Y	LTE band-17
200	DPM710-765-15A1	Low	Monoblock	Low	703~718	2.00	1.00	15	60 @ 758~773	758~773	2.00	1.00	15	60 @ 703~718	3	42.5x20.5x9.5		Y	LTE band-17
201	DPM713-768-20A1	Low	Monoblock	Low	703~723	3.00	2.00	15	45 @ 758~778	758~778	3.00	2.00	15	45 @ 703~723	3	31.0x14.5x5.2		Y	LTE band-68
202	DPM725-780-45A1	Low	Monoblock	Low	703~748	3.50	2.50	15	40 @ 758~803	758~803	3.50	2.50	15	40 @ 703~748	3	43x21x9.3		Y	LTE band-28
203	DPM733-788-30A1	Low	Monoblock	Low	718~748	2.00	1.00	15	60 @ 773~803	773~803	2.00	1.00	15	60 @ 718~748	3	42.5x20.5x9.5		Y	LTE
204	DPM751-781-11A1	Low	Monoblock	Low	746~757	2.50	1.00	18	50 @ 776~787	776~787	2.50	1.00	15	65 @ 746~757	5	42.5x20.5x9.5		Y	LTE band-13
205	DPM751-782-5A1	Low	Monoblock	Low	748.5~753.5	2.50	0.50	15	50 @ 779.5~784.5	779.5~784.5	2.50	0.50	15	50 @ 748.5~753.5	5	45x20x9.5		Y	LTE band-13
206	DPM751-782-10A1	Low	Monoblock	Low	746~756	2.50	0.50	14	50 @ 777~787	777~787	2.50	0.50	14	50 @ 746~756	5	42x20x9.5		Y	LTE band-13
207	DPM751-782-10B1	Low	Monoblock	Low	746~756	2.50	1.20	15	55 @ 777~787	777~787	2.50	1.20	15	55 @ 746~756	3	42.0x20.0x9.5		Y	LTE band-13
208	DPM763-793-05A1	Low	Monoblock	Low	760.5~765.5	2.50	0.00	15	50 @ 790.5~795.5	790.5~795.5	2.50	0.50	15	50 @ 760.5~765.5	5	42x20x9.5		Y	LTE band-14
209	DPM763-793-10A1	Low	Monoblock	Low	758~768	2.50	1.00	15	50 @ 788~798	788~798	2.50	1.00	15	50 @ 758~768	5	42x20x9.5		Y	LTE band-14
210	DPM763-793-10B1	Low	Monoblock	Low	758~768	2.00	1.00	15	60 @ 788~798	788~798	2.00	1.00	15	60 @ 758~768	5	65x25x11.2		Y	LTE band-14
211	DPM763-793-10C1	Low	Monoblock	Low	758~768	2.00	1.00	15	60 @ 788~798	788~798	2.00	1.00	15	60 @ 758~768	3	42x20x9.5		Y	LTE band-14
212	DPM806-847-30A1	Low	Monoblock	Low	791~821	3.00	1.50	14	45 @ 832~862	832~862	3.00	1.50	14	45 @ 791~821	2	42.5x17.5x9.5		Y	LTE band-20
213	DPM822-867-15A1	Low	Monoblock	Low	815~830	2.50	1.00	18	55 @ 860~875	860~875	2.50	1.00	18	55 @ 815~830	3	43.0x18.0x9.5		Y	LTE
214	DPM831-876-35A1	Low	Monoblock	Low	814~849	4.00	3.00	15	50 @ 859~894	859~894	4.00	3.00	15	50 @ 814~849	5	43.0x18.0x9.5		Y	LTE band-26
215	DPM836-881-25A1	Low	Monoblock	Low	824~849	2.00	1.00	15	60 @ 869~849	869~894	2.00	1.00	15	60 @ 824~849	3	65.0x20.0x11.2		Y	LTE band-19
216	DPM836-881-25B1	Low	Monoblock	Low	824~849	2.50	1.00	15	45 @ 869~894 40 @ 728~757 30 @ 1930~2155	869~894	2.50	1.00	15	45 @ 824~849 40 @ 698~787 40 @ 1710~1915	3	70x22x11.2		Y	LTE band-19
217	DPM837-882-15A1	Low	Monoblock	Low	830~845	2.00	0.50	20	50 @ 875~890 40 @ 865~875 40 @ 900~945 30 @ 1000~1900	875~890	2.00	0.50	20	55 @ 830~845 33 @ 715~830 33 @ 945~960 25 @ 1427.9~1525	3	42.5x17.5x9.5		Y	LTE band-19
218	DPM897-942-35A1	Low	Monoblock	Low	880~915	3.00	2.00	14	45 @ 925~960	925~960	3.00	2.00	14	45 @ 880~915	3	45x18x8.8		Y	LTE band-8
219	DPM897-942-35B1	Low	Monoblock	Low	880~915	3.00	2.00	13	45 @ 925~960	925~960	3.00	2.00	13	45 @ 880~915	3	45x18x9.5		Y	LTE band-8
220	DPM897-942-35C1	Low	Monoblock	Low	880~915	2.50	1.50	15	55 @ 925~960	925~960	2.50	1.50	15	55 @ 880~915	3	44.0x20.5x9.5		Y	LTE band-8
221	DPM897-942-35C2	Low	Monoblock	Low	880~915	3.50	2.50	15	50 @ 925~960	925~960	3.50	2.50	15	50 @ 880~915	3	48.0x20.0x9.5		Y	LTE band-8
222	DPM897-942-35D1	Low	Monoblock	Low	880~915	3.00	1.50	15	50 @ 925~960	925~960	3.00	1.50	15	50 @ 880~915	5	65.5x20.5x11.5		Y	LTE band-8
223	DPM897-942-35E1	Low	Monoblock	Low	880~915	3.50	2.50	15	50 @ 925~960	925~960	3.50	2.50	15	50 @ 880~915	3	42.5x17.5x9.5		Y	LTE band-8
224	DPM902-947-25A1	Low	Monoblock	Low	877~927	2.30		11	30 @ 922~972	922~972	2.30		11	30 @ 877~927	3	20.00x14.00x4.15		Y
225	High Power					0.00	0.00	0			0.00	0.00	0		0
226	DHCM634-680-35A1	Low	Monoblock	High	617~652	3.00	2.00	15	50 @ 663~678	663~698	3.00	2.00	15	50 @ 617~652	10	67.6x18.8x15		Y	LTE band-71
227	DHCX2132-1732-45A1	High	Monoblock	High	2109.5~2154.5	1.00	0.80	18	50 @ 1710~1755	1709.5~1754.5	1.00	0.80	18	50 @ 2110~2155	60	94.3x33.6x43.2	Convert	Y	LTE band-4
228	DHNM1539-1650-42A1(DPX0559A)	High	Monoblock	High	1518~1560	1.10		14	58 @ 1626~1675 50 @ 80~1300 20 @ 1430~1450 55 @ 1676~1680 50 @ 1681~1720 47 @ 1721~2300 35 @ 2301~2550 25 @ 2551~2700	1626~1675	1.30		14	58 @ 1518~1560 50 @ 10~445 40 @ 450~1450 50 @ 1455~1517 15 @ 1830~2030 20 @ 2035~2175 25 @ 2180~2400 30 @ 2401~2600 20 @ 2601~2700 10 @ 2701~2790	15	40.5x7.7x8.5	Y	Y
229	DHNM1539-1650-42B1 (DPX0559B)	High	Monoblock	High	1518~1560	1.10		14	58 @ 1626~1675 50 @ 80~1300 20 @ 1430~1450 55 @ 1676~1680 50 @ 1681~1720 47 @ 1721~2300 35 @ 2301~2550 25 @ 2551~2700	1626~1675	1.30		14	58 @ 1518~1560 50 @ 10~445 40 @ 450~1450 50 @ 1455~1517 15 @ 1830~2030 20 @ 2035~2175 25 @ 2180~2400 30 @ 2401~2600 20 @ 2601~2700 10 @ 2701~2790	15	40.5x7.7x8.5	Y	Y
231	DHNM1539-1650-42C1(DPX0560A)	High	Monoblock	High	1518~1560	1.30		14	60 @ 1626~1675 50 @ 80~1300 15 @ 1417~1442.1 60 @ 1676~1867 55 @ 1868~1909 25 @ 1900~2500 15 @ 2500~2700	1626~1675	1.50		14	60 @ 1518~1560	12	42.5x8.0x8.5	Y	Y
232	DHNM1539-1650-42D1	High	Monoblock	High													Y
233	DHNM1735-1830-50A1	High	Monoblock	High	1710~1760	2.00		18	50 @ 1805~1855 30 @ DC~960 30 @ 1930~2700 30 @ 960~1500	1805~1855	3.00		18	65 @ 1710~1760 30 @ DC~960 30 @ 1930~2700 40 @ 960~1710	10	58.5x9.5x9.3	Y	Y	LTE
234	DHNM1737-1830-55A1	High	Monoblock	High	1710~1765	2.00		18	30 @ DC~960 30 @ 1930~2700 50 @ 1805~1855 30 @ 960~1500	1805~1855	3.00		18	30 @ DC~960 30 @ 1930~2700 65 @ 1710~1760 40 @ 960~1710	10	58.5x9.5x9.3	Y	Y	LTE
235	DHNM1760-1855-50A1	High	Monoblock	High	1735~1785	2.00		18	30 @ DC~960 30 @ 1930~2700 50 @ 1830~1880 30 @ 960~1500	1830~1880	3.00		18	30 @ DC~960 30 @ 1960~2700 65 @ 1735~1785 40 @ 960~1735	10	58.5x9.5x9.3	Y	Y	LTE
236	DHNM1950-2140-60A1	High	Monoblock	High	1920~1980	1.50		15	50 @ 2110~2170	2110-2170	1.50		15	50 @ 1920~1980	10	40.50x7.50x8.00		Y	LTE band-1
237	DHNM1950-2140-60B1	High	Monoblock	High	1920~1980	2.00		18	50 @ 2110~2170	2110~2170	2.00		18	70 @ 1920~1980	10	46x8.3x8.3		Y	LTE band-1
238	DHPM1575-1621-11A1	High	Monoblock	High	1570~1581	1.50		15	50 @ 1616~1626	1616~1626	1.80		15	50 @ 1570~1581	20	83.0x15.0x16.3	Convert	Y	L band
239	DHPM1732-2132-45A1	High	Monoblock	High	1710~1755	1.20		16	55 @ 2110~2155	2110~2155	1.20		16	55 @ 1710~1755	5	83x15x17.0		Y	LTE band-4
240	DHPM1732-2132-45B1	High	Monoblock	High	1710~1755	1.50		14	55 @ 2110~2155	2110~2155	1.50		14	55 @ 1710~1755	10	83x15x17		Y	LTE band-4
241	DHPM1732-2132-45B2	High	Monoblock	High	1710~1755	1.20		16	60 @ 2110~2155	2110~2155	1.20		16	60 @ 1710~1755	10	43.5x14.0x9.5		Y	LTE band-4
242	DHPM1747-1842-75A1	High	Monoblock	High	1710~1785	3.00		15	55 @ 1805~1880	1805~1880	3.00		15	55 @ 1710~1785	20	83x15x17		Y	LTE band-3
243	DHPM1747-1842-75A2	High	Monoblock	High	1710~1785	3.00		15	55 @ 1805~1880	1805~1880	3.00		15	55 @ 1710~1785	20	79.5x22x16.5		Y	LTE band-3
244	DHPM1747-1842-75A3	High	Monoblock	High	1710~1785	2.00		15	30 @ 1805~1880	1805~1880	2.00		15	25 @ 1710~1785	10	67.6x13.5x15.1		Y	LTE band-3
245	DHPM1747-1842-75B1	High	Monoblock	High	1710~1785	3.00		15	55 @ 1805~1880	1805~1880	3.00		15	55 @ 1710~1785	10	84.0x16.0x17.8		Y	LTE band-3
246	DHPM1795-2045-170A1	High	Monoblock	High	1710~1880	2.20		15	20 @ 1920~2170	1920~2170	2.20		15	20 @ 1710~1880	10	83x15x17.8		Y	LTE
247	DHPM1880-1960-60A1	High	Monoblock	High	1850~1910	3.00		16	55 @ 1930~1990	1930~1990	3.00		16	55 @ 1850~1910	20	83x15x17		Y	LTE band-2
248	DHPM1882-1962-65A1	High	Monoblock	High	1850~1915	3.00	2.30	14	50 @ 1930~1995	1930~1995	3.00	2.30	14	55 @ 1850~1915	20	83x15x17		Y	LTE
249	DHPM1882-1962-65A2	High	Monoblock	High
250	DHPM1882-1962-65B1	High	Monoblock	High	1850~1915	3.50	2.50	15	50 @ 1930~1995	1930~1995	3.50	2.50	15	50 @ 1850~1915	10	65x20x11.2		Y	LTE
251	DHPM1950-2140-60A1	High	Monoblock	High	1920~1980	1.50		15	55 @ 2110~2170	2110~2170	1.50		15	55 @ 1920~1980	20	82x25x16.3		Y	LTE band-1
252	DHPM1950-2140-60B1	High	Monoblock	High	1920~1980	1.00		15	60 @ 2110~2170	2110~2170	1.00		15	60 @ 1920~1980	10	84x16x18		Y	LTE band-1
253	DHPM1962-2132-65A1	High	Monoblock	High	1930~1995	4.20		15	65 @ DC~1850 30 @ 1915 5 @ 2005 20 @ 2020 30 @ 2035~2050 3~4 @ 2109	2110~2155	4.20		15	22 @ 2180 60 @ 2400~2480 40 @ 4000~6000 30 @ 6000~13000	10		Convert	Y
254	DHPM2132-1732-45A1	High	Monoblock	High	2110~2155	1.50		14	55 @ 1710~1755	1710~1755	1.50		14	55 @ 2110~2155	10	83.0x15.0x17.0		Y	LTE band-4
255	DHPM2535-2655-70A1	High	Monoblock	High	2500~2570	2.00	1.00	15	55 @ 2620~2690	2620~2690	2.00	1.00	15	55 @ 2500~2570	20	83.0x15.0x17.0		Y	LTE band-7
256	DHPM2535-2655-70B1	High	Monoblock	High	2500~2570	2.50	1.50	15	60 @ 2620~2690	2620~2690	2.50	1.50	15	60 @ 2500~2570	20	66x16x11.5		Y	LTE band-7
257	DHPM382-392-05A1	Low	Monoblock	High	380~385	3.00		15	55 @ 390~395	390~395	3.00		15	55 @ 380~385	20	80.5x23.5x18.0	Y	Y	UHF
258	DHPM387-397-05A1	Low	Monoblock	High	385~390	3.00		15	55 @ 395~400	395~400	3.00		15	55 @ 385~390	20	80.0x22.0x18.0	Y	Y	UHF
259	DHPM387-408-15A1	Low	Monoblock	High	380~395	2.50		20	55 @ 406~410	406~410	2.50		15	55 @ 380~395	20	80.5x22.3x18.0	Y	Y	UHF
260	DHPM387-408-15B1	Low	Monoblock	High	380~395	2.00		15	55 @ 406~410	406~410	2.00		15	55 @ 380~395	20	80.0x22.0x16.3	Y	Y	UHF
261	DHPM414-424-05A1	Low	Monoblock	High	412~417	2.50		15	42 @ 422~427	422~427	2.50		15	42 @ 412~417	20	80.0x22.0x16.3	Y	Y	UHF
262	DHPM417-427-05A1	Low	Monoblock	High	415~420	3.00		15	55 @ 425~430	425~430	3.00		15	55 @ 415~420	20	80.0x22.0x16.3	Y	Y	UHF
263	DHPM425-495-30A1	Low	Monoblock	High	410~440	3.00		15	65 @ 480~510	480~510	3.00		15	60 @ 410~440	10	84.0x25.0x18.5	Y	Y	UHF
264	DHPM494-542-08A1	Low	Monoblock	High	490~498	2.10		15	40 @ 506~546 35 @ 452~482	538~546	3.00		15	40 @ 490~530 38 @ 554~584	20	80.5x23.5x18.0	Y	Y	UHF
265	DHPM498-546-08A1	Low	Monoblock	High	494~502	2.10		15	40 @ 510~550 35 @ 456~486	542~550	3.00		15	40 @ 558~588 38 @ 504~534	20	80.5x23.5x18.0	Y	Y	UHF
266	DHPM634-680-35A1	Low	Monoblock	High	617~652	3.00	2.00	15	50 @ 663~678	663~698	3.00	2.00	15	50 @ 617~652	10	67.6x18.8x15		Y	LTE band-71
267	DHPM710-740-12A1	Low	Monoblock	High	704~716	2.00	1.00	15	60 @ 734~746	734~746	2.00	1.00	15	60 @ 704~716	20	81.0x23.0x18.0		Y	LTE band-17
268	DHPM716-786-40A1	Low	Monoblock	High	696~736	3.00		15	60 @ 766~806	766~806	3.00		15	60 @ 696~736	20	64.0x18.5x12.5	Y	Y	UHF
269	DHPM725-780-45A1	Low	Monoblock	High	703~748	3.00	2.00	15	50 @ 703~748	758~803	3.00	2.00	15	50 @ 703~748	10	79.5x22x16		Y	LTE band-28
270	DHPM725-780-45B1	Low	Monoblock	High	703~748	2.20	1.70	15	50 @ 758~803	758~803	2.20	1.70	15	50 @ 703~748	20	80x22x17	Y	Y	LTE band-28
271	DHPM763-793-05A1	Low	Monoblock	High	760.5~765.5	1.00	0.50	15	65 @ 790.5~795.5	790.5~795.5	1.00	0.50	15	65 @ 760.5~765.5	10	84.0x16.0x18.0		Y	LTE band-14
272	DHPM763-793-10A1	Low	Monoblock	High	758~768	1.50	1.00	15	65 @ 788~798	788~798	1.50	1.00	15	65 @ 758~768	10	83x15x17.7		Y	LTE band-14
273	DHPM833-878-32A1	Low	Monoblock	High	817~849	2.70		15	30 @ 777~787 55 @ 862~894	862~894	2.70		15	60 @ 817~849	10	79.5x22.0x16.0	Y	Y	UHF
274	DHPM833-878-32B1	Low	Monoblock	High	817~849	2.70		15	30 @ 777~787 55 @ 862~894	862~894	2.70		15	60 @ 817~849	10	65.0x20.0x11.2	Y	Y	UHF
275	DHPM806-847-30A1	Low	Monoblock	High	791~821	2.50	1.50	15	35 @ 832~862	832~862	2.50	1.50	15	35 @ 791~821	20	79.5x22x16.5		Y	LTE band-20
276	DHPM836-881-25A1	Low	Monoblock	High	824~849	2.00		15	55 @ 869~894	869~894	2.00		15	55 @ 824~849	10	79.5x22x16.5		Y	LTE band-5
277	DHPM836-881-25B1	Low	Monoblock	High	824~849	2.50		10	40 @ 869~894	869~894	3.20		10	60 @ 824~849	2	22.0x9.6x3.85		Y	LTE band-5
278	DHPM897-942-35A1	Low	Monoblock	High	880~915	3.30	2.30	15	55 @ 925~960	925~960	3.30	2.30	15	55 @ 880~915	10	80x22x16.5		Y	LTE band-8
279	DHPM897-942-35B1	Low	Monoblock	High	880~915	3.00	2.00	15	58 @ 925~960	925~960	3.00	2.00	15	58 @ 880~915	10	79.5x22x16		Y	LTE band-8
280	DHPM897-942-35B2	Low	Monoblock	High	880~915	2.00	1.40	15	45 @ 925~960	925~960	2.00	1.40	15	45 @ 880~915	10	68.15x19.28x15		Y	LTE band-8
		Frequency	Form factor	Power															Band type

Would you like to know more about Ceramic Monoblock Duplexer?

Request a Quote Today!

Ceramic Monoblock Duplexers

MCV Ceramic Monoblock Duplexers

Would you like to know more about Ceramic Monoblock Duplexer?

Certification

Our Policies
